Dashboard Wire Harness




Connector and Harness Locations

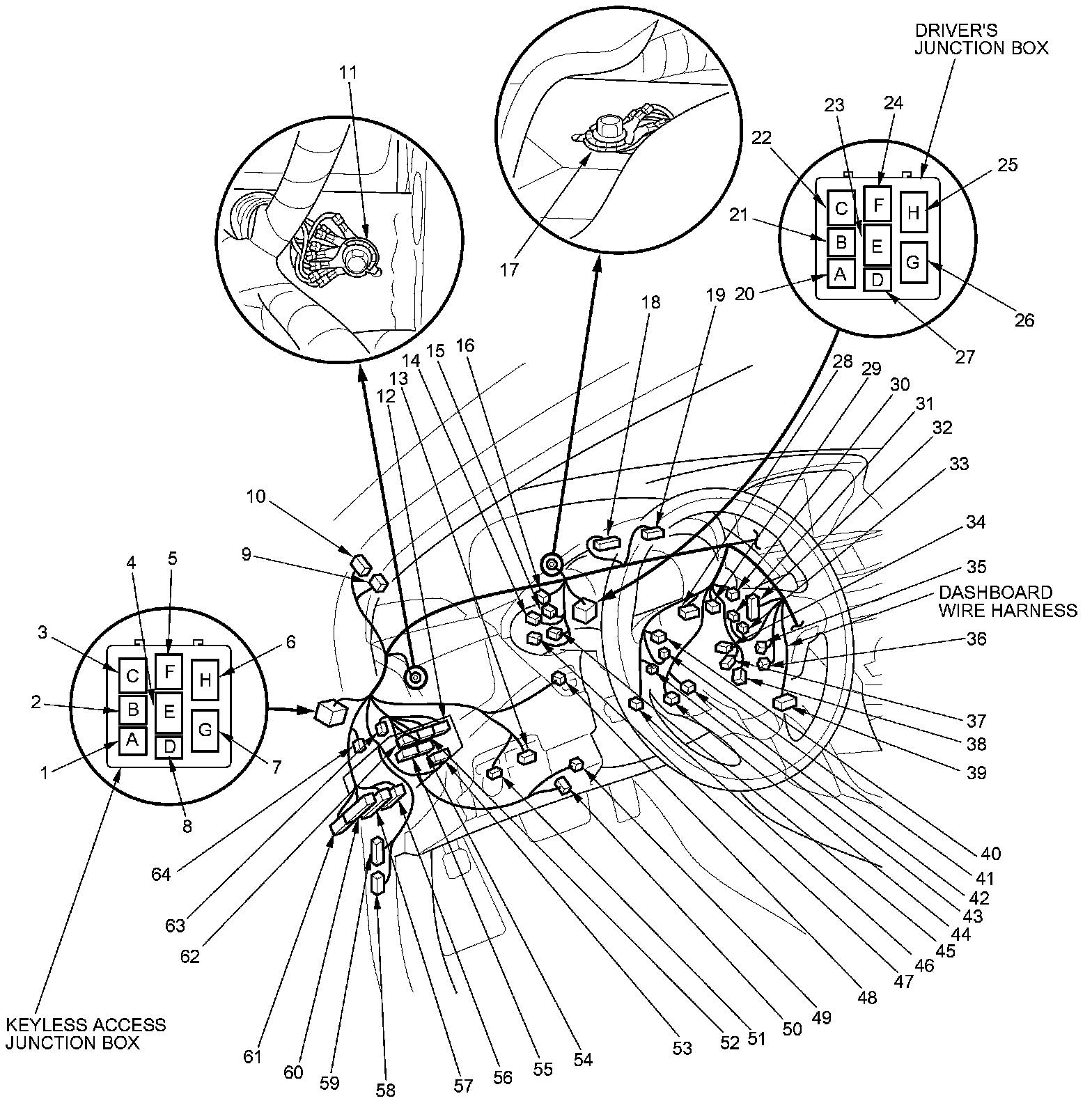

Dashboard Wire Harness (View of Driver's Side)














Harness View

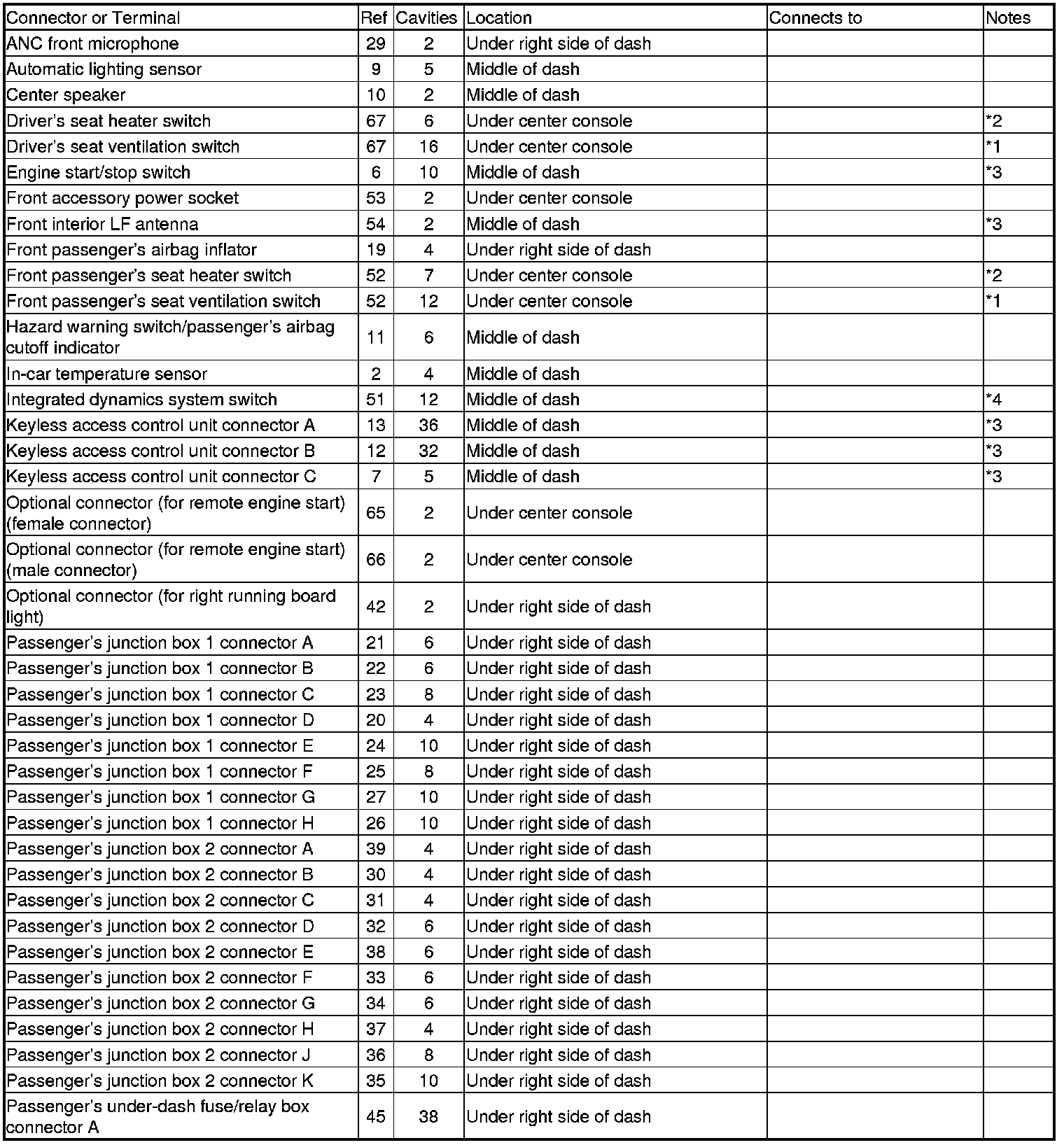

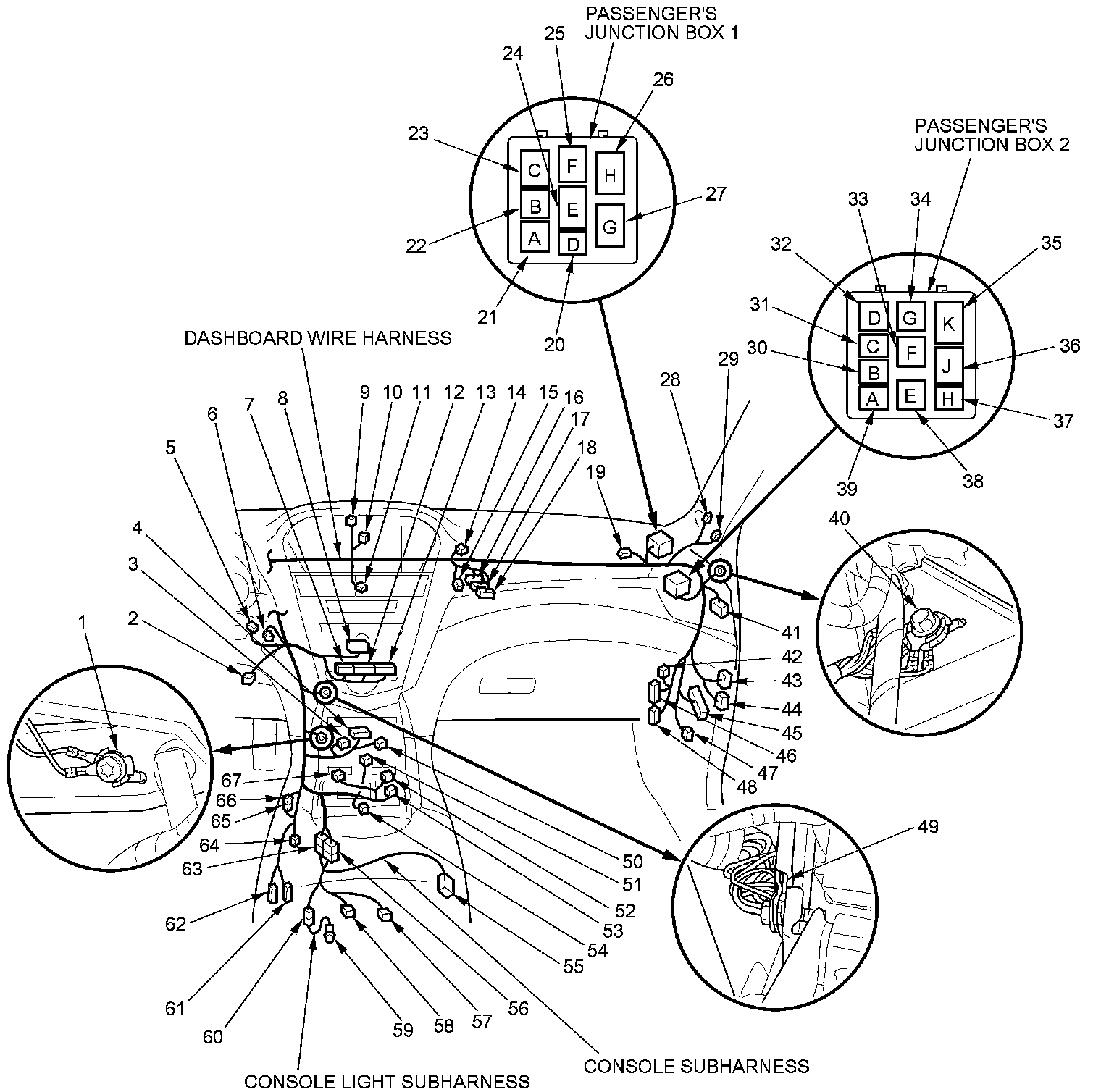

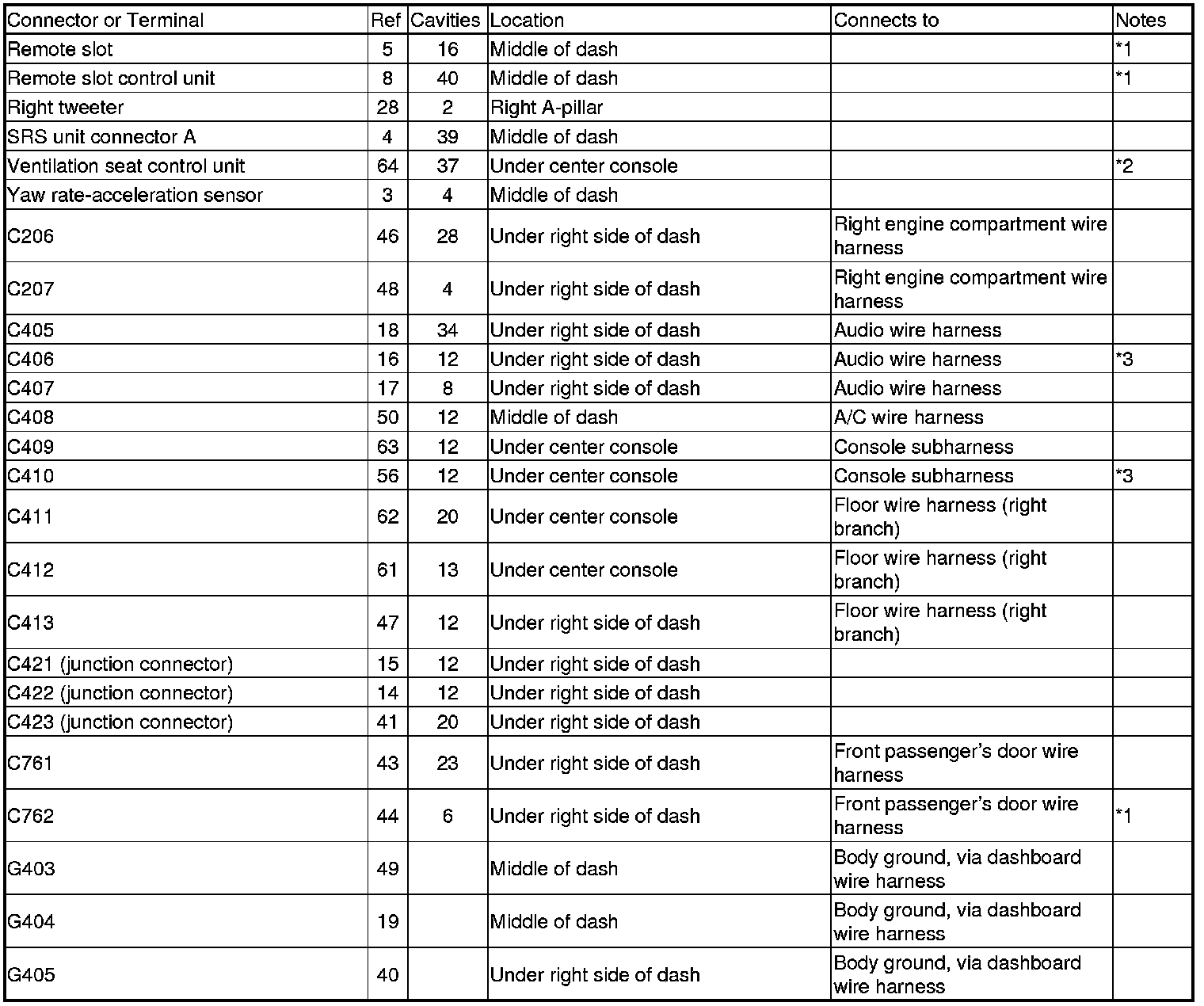

Dashboard Wire Harness (View of Middle to Passenger's Side)


















Harness View
