Console, Console Light Subharness
Console, Console Light Subharness
Connector and Harness Locations

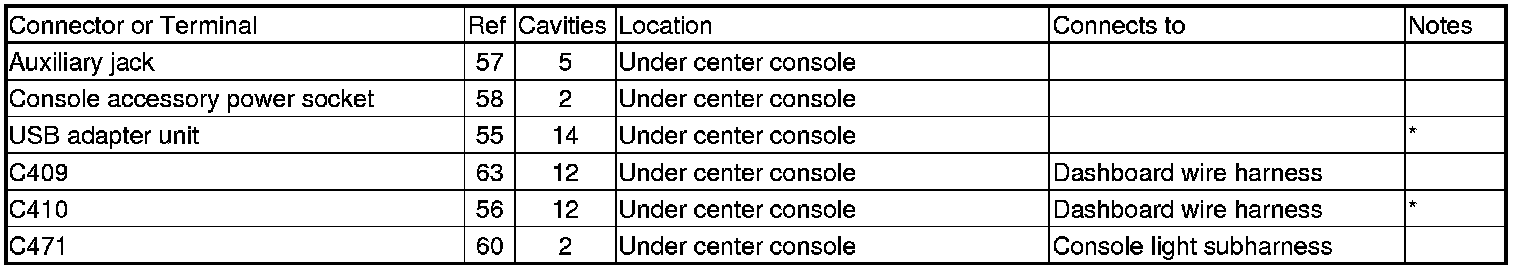

Console Subharness

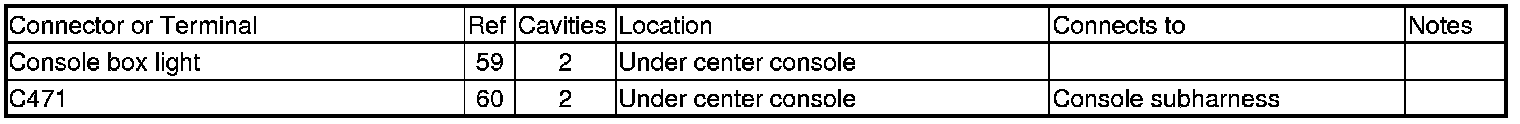

Console Light Subharness

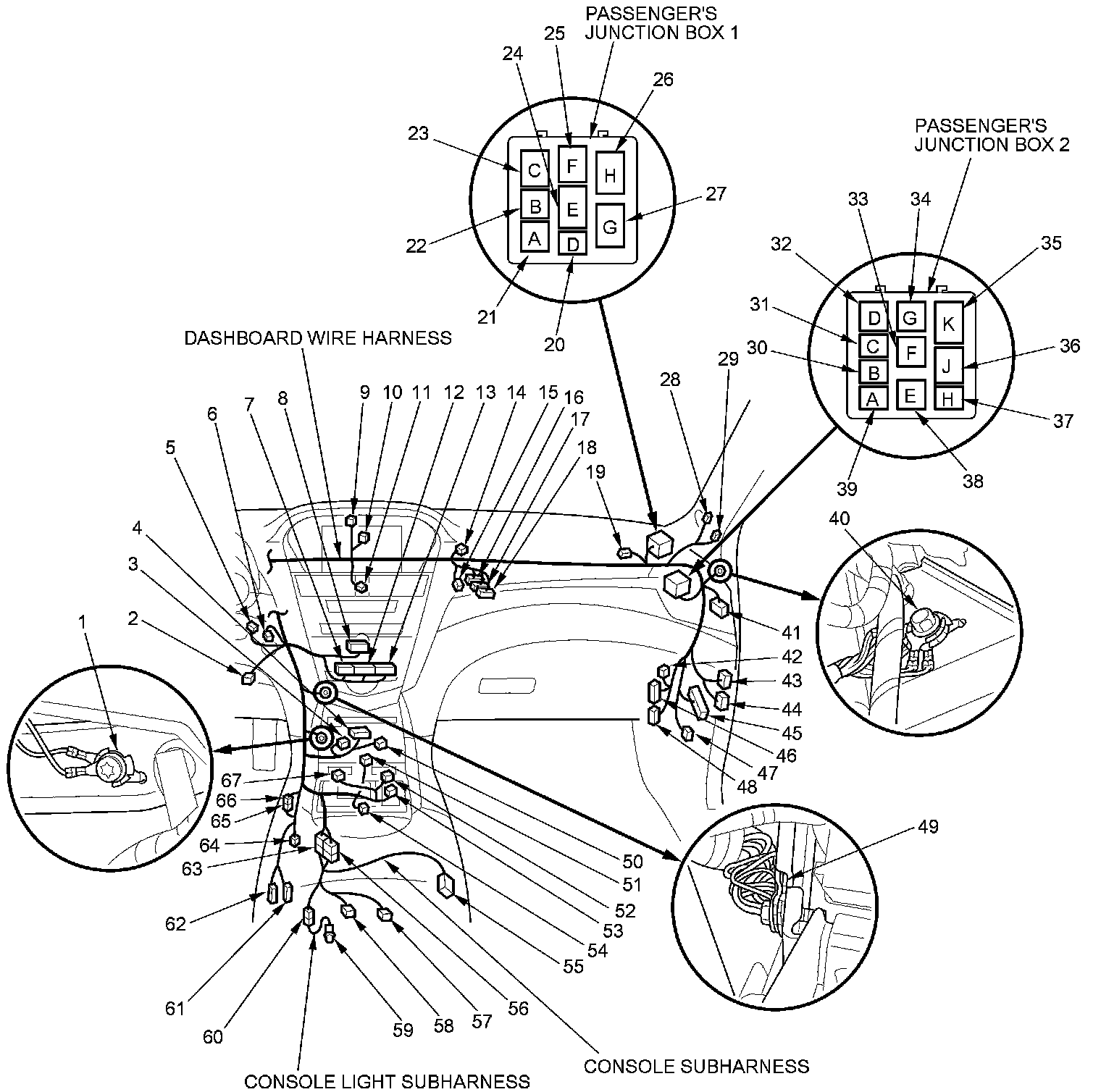

Harness View
