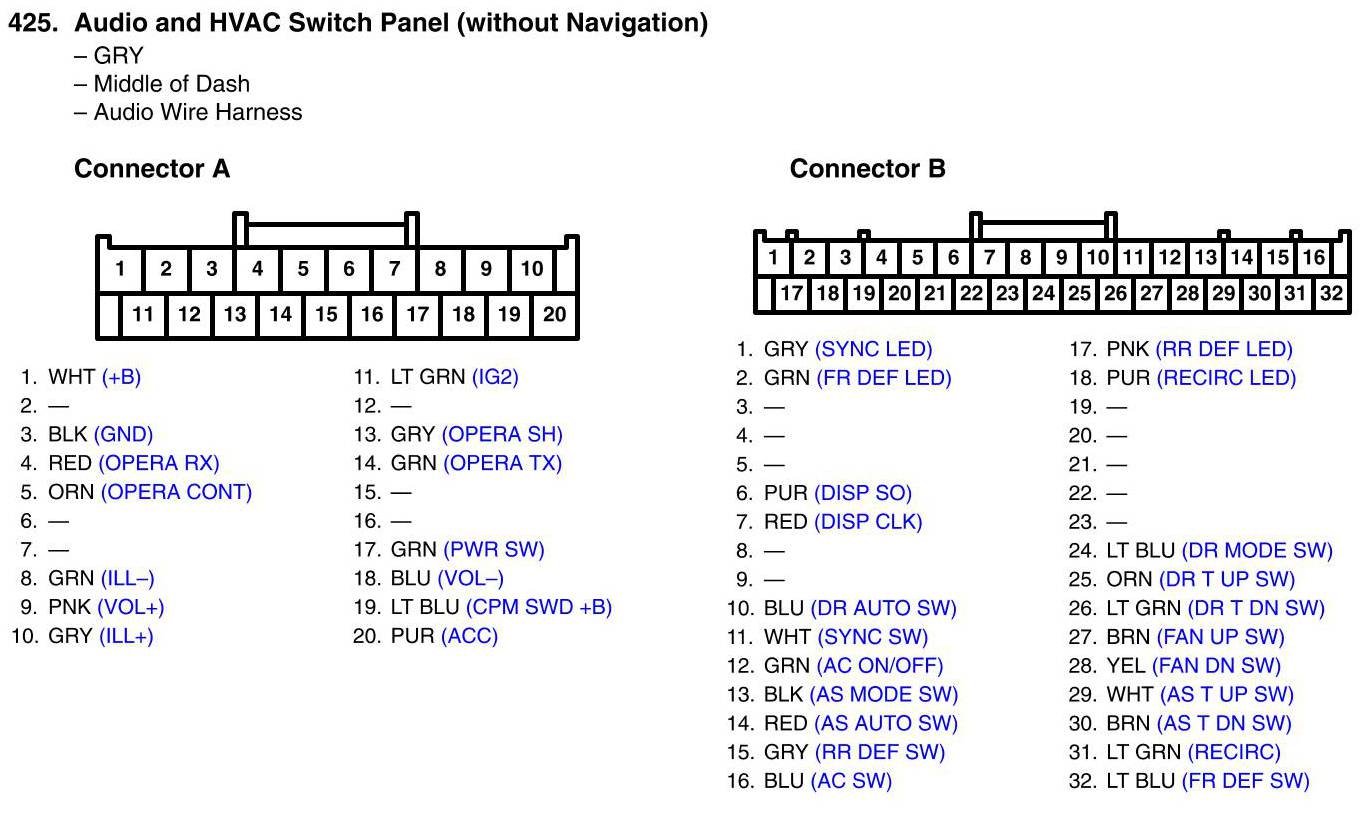

View 425 - Audio And HVAC Switch Panel Connector View (Without Navigation)
View 425 - Audio And HVAC Switch Panel Connector View (Without Navigation)
