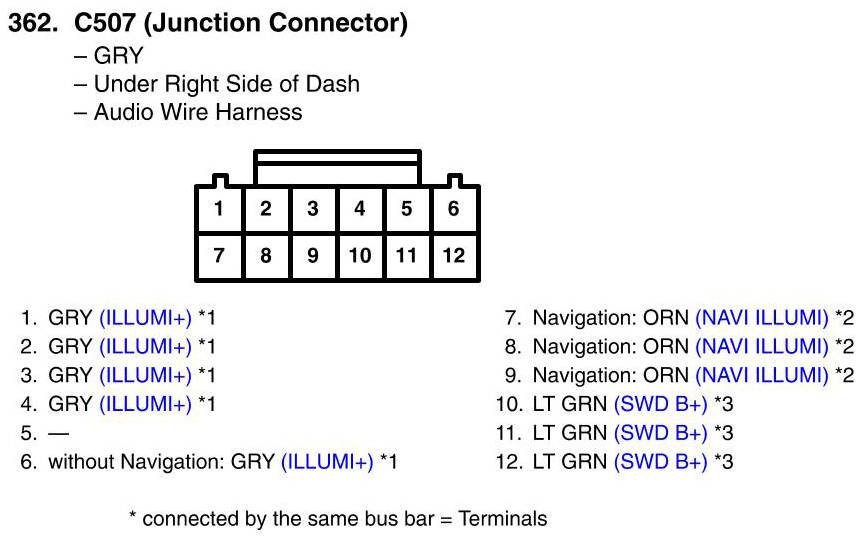

View 362 - C507 (Junction Connector) Connector View
View 362 - C507 (Junction Connector) Connector View
