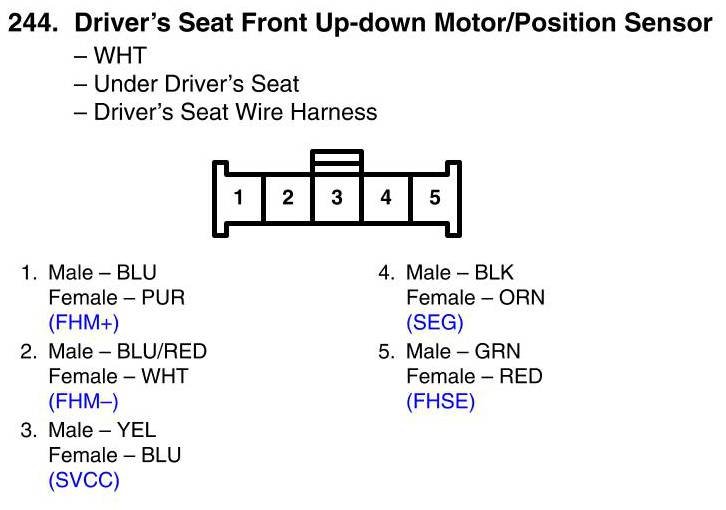

View 244 - Driver's Seat Front Up-down Motor/Position Sensor Connector View
View 244 - Driver's Seat Front Up-down Motor/Position Sensor Connector View
