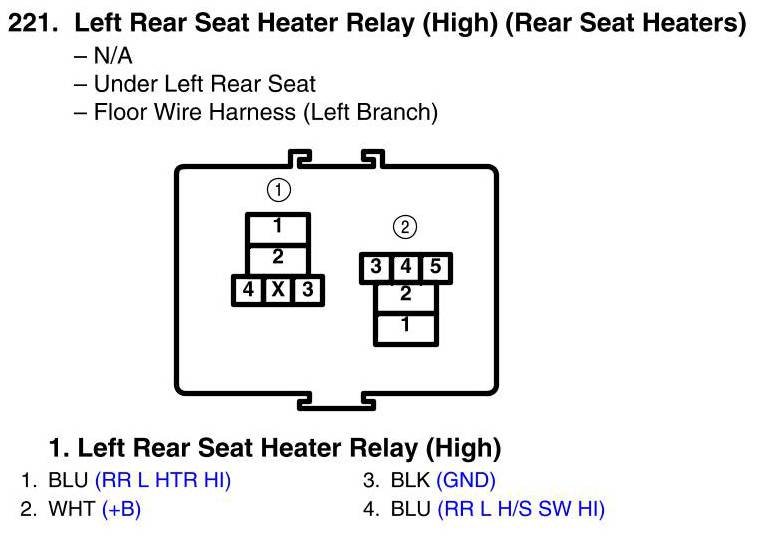

View 221 - Left Rear Seat Heater Relay (High) Connector View (Rear Seat Heaters)
View 221 - Left Rear Seat Heater Relay (High) Connector View (Rear Seat Heaters)
