Home
>>
Acura
>>
2010
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Collision Avoidance and Parking Assist Systems
>>
Parking Assist Control Module
>>

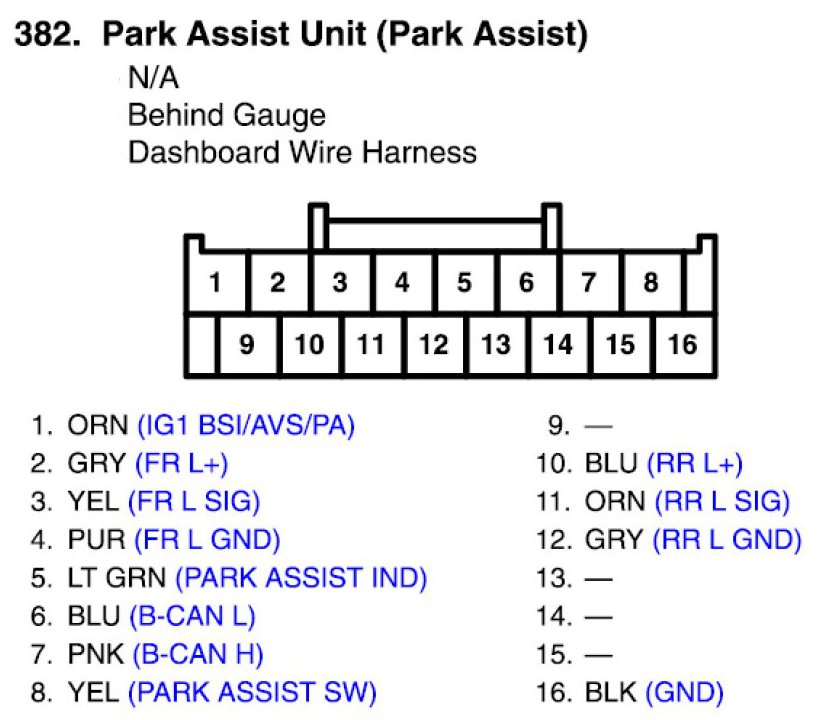

Park Assist Unit Connector View (Park Assist)
Park Assist Unit Connector View (Park Assist)
