Home
>>
Acura
>>
2010
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Collision Avoidance and Parking Assist Systems
>>
Blind Spot Module
>>

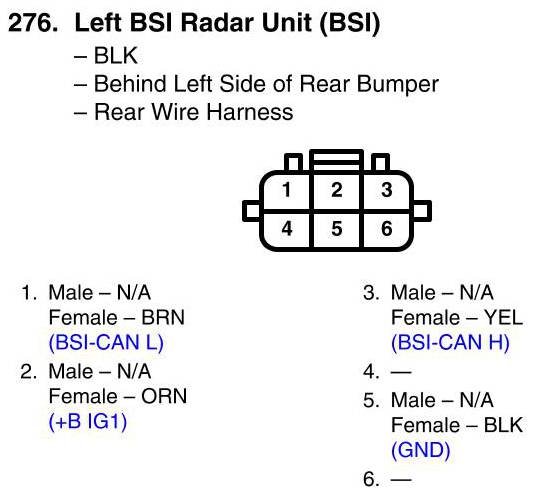

Left BSI Radar Unit Connector View (BSI)
Left BSI Radar Unit Connector View (BSI)
