Rear Seat-Back Striker Replacement

Rear Seat-Back Striker Replacement

NOTE: Put on gloves to protect your hands.

1. Remove the rear side trim panel Interior Trim Removal/Installation - Rear Side Area.

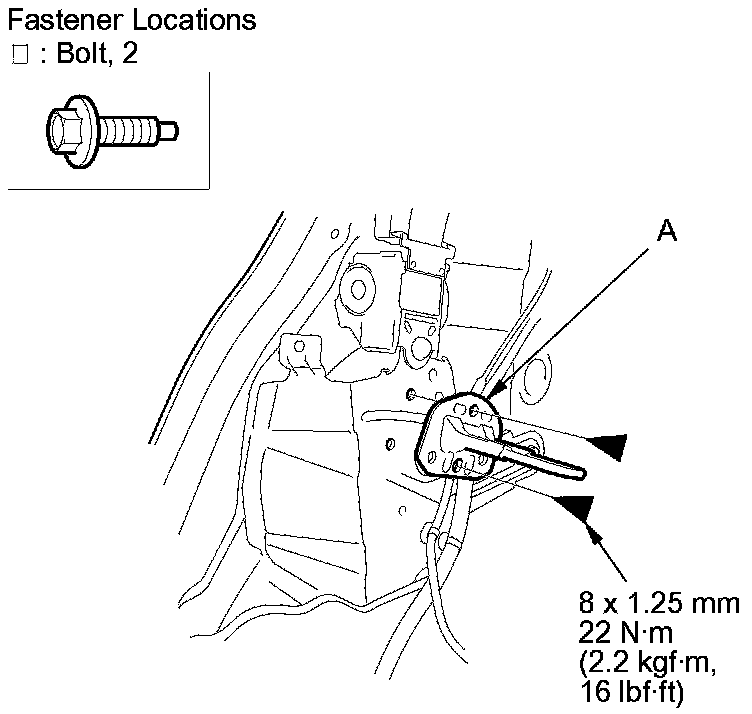

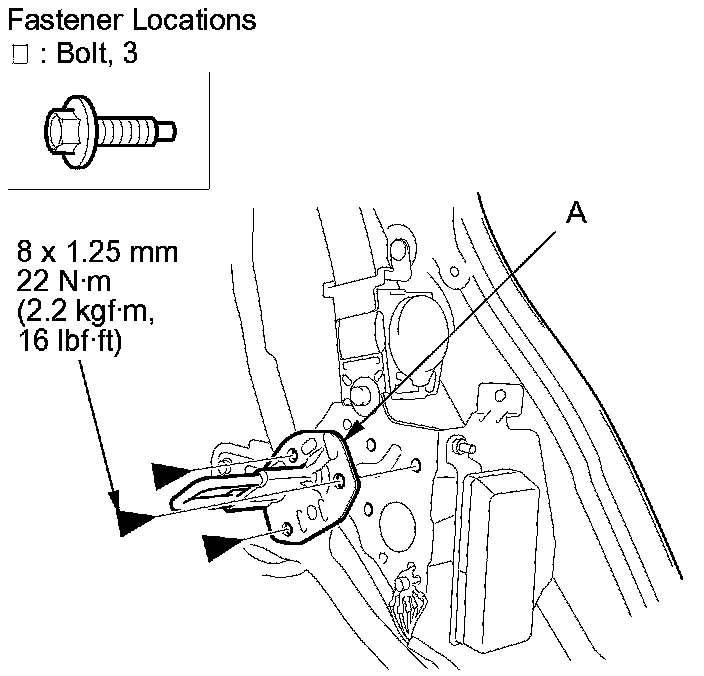

2. Remove the bolts, then remove the rear seat-back striker (A).










3. Install the striker in the reverse order of removal, and move the striker (A) up or down until it is centered in the seat-back latch (B).
