Rear Cargo Support Beam Replacement

Rear Cargo Support Beam Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body or the related parts.

1. Remove the rear under floor cover Interior Trim Removal/Installation - Cargo Area.

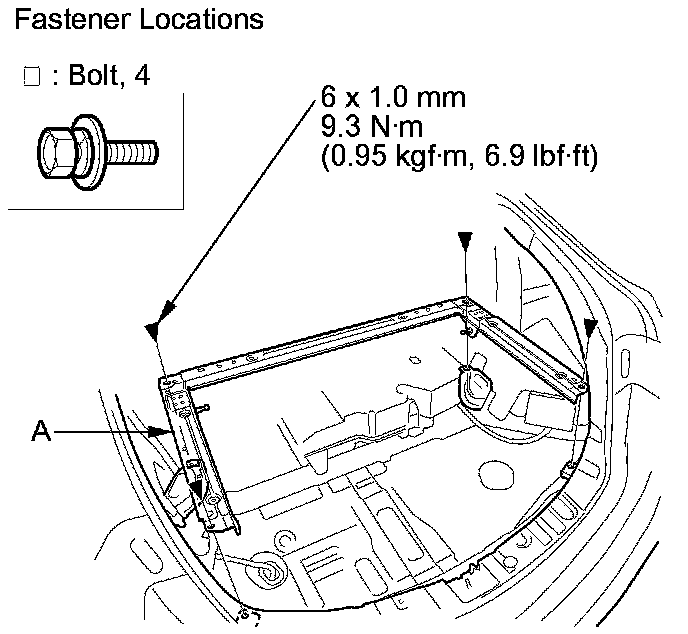

2. Remove the bolts, then remove the rear cargo support beam (A).






3. Install the support beam in the reverse order of removal.
