Audio-Navigation and HVAC Switch Panel Removal/Installation

Audio-Navigation and HVAC Switch Panel Removal/Installation

With Navigation System

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and related parts.
- Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.

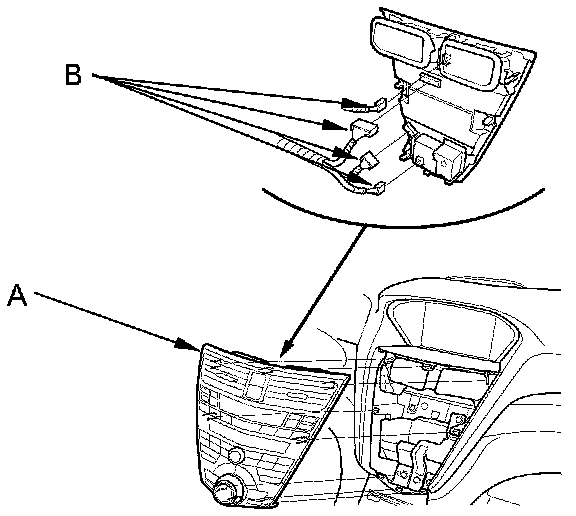

1. Pull the audio-navigation and HVAC switch panel (A) out, then disconnect the connectors (B) from the audio-navigation and HVAC switch panel.





2. Remove the interface dial Service and Repair.

3. Install the switch panel in the reverse order of removal.
