Audio System Description, Part Two

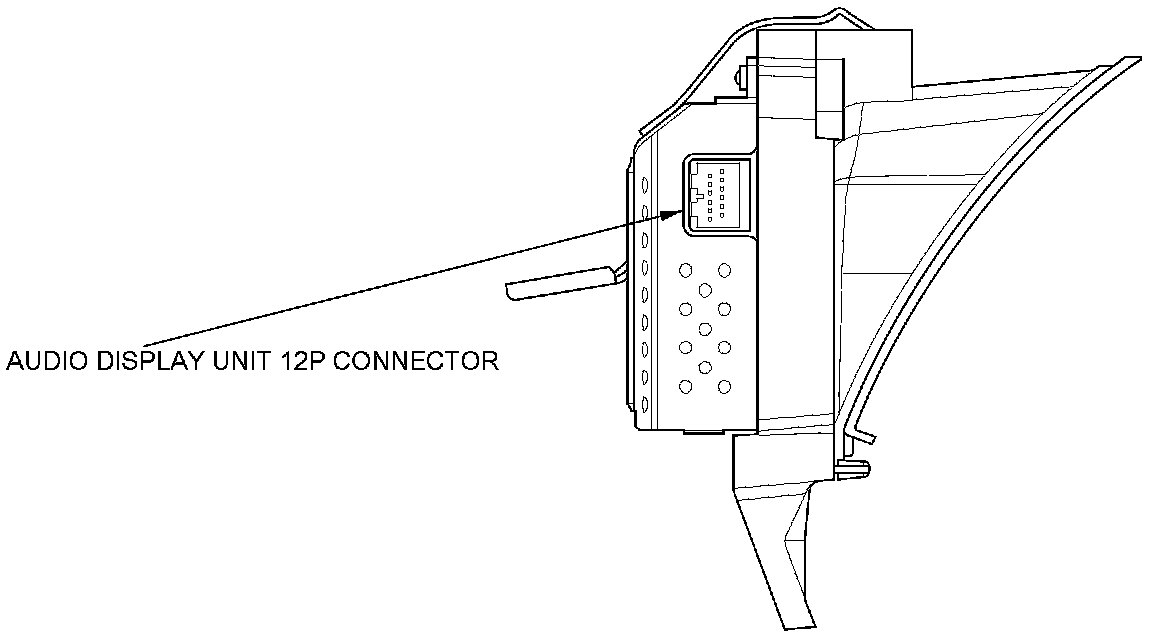

Audio System Description

Audio-Navigation and HVAC Switch Panel for Inputs and Outputs (With Navigation System)

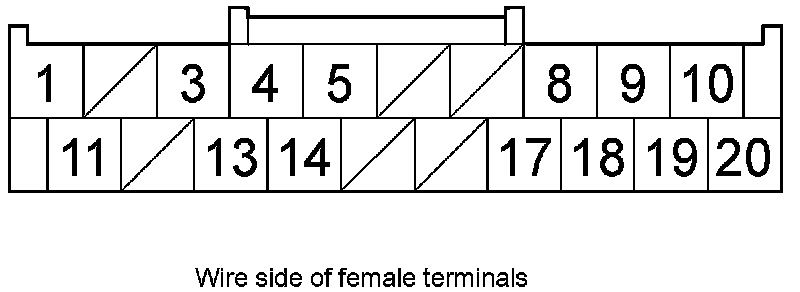

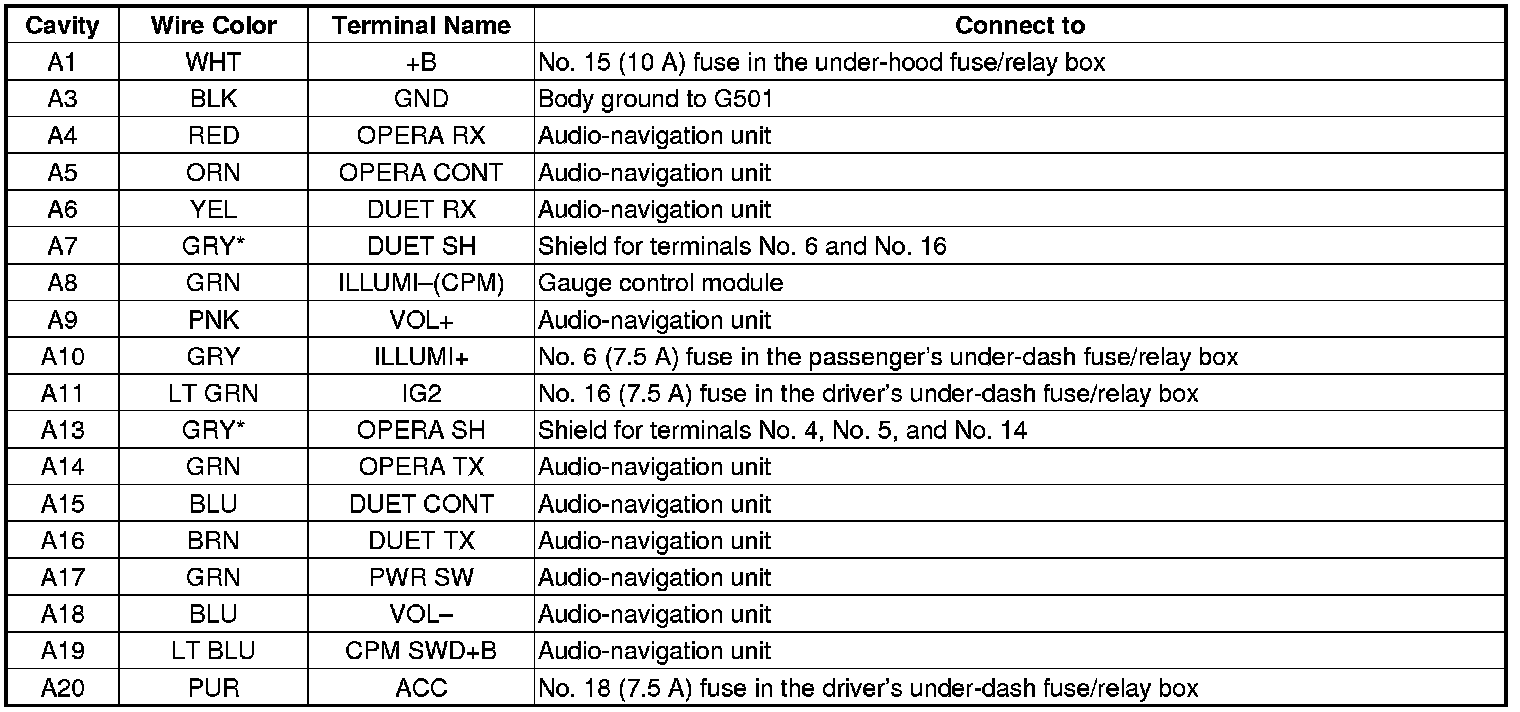

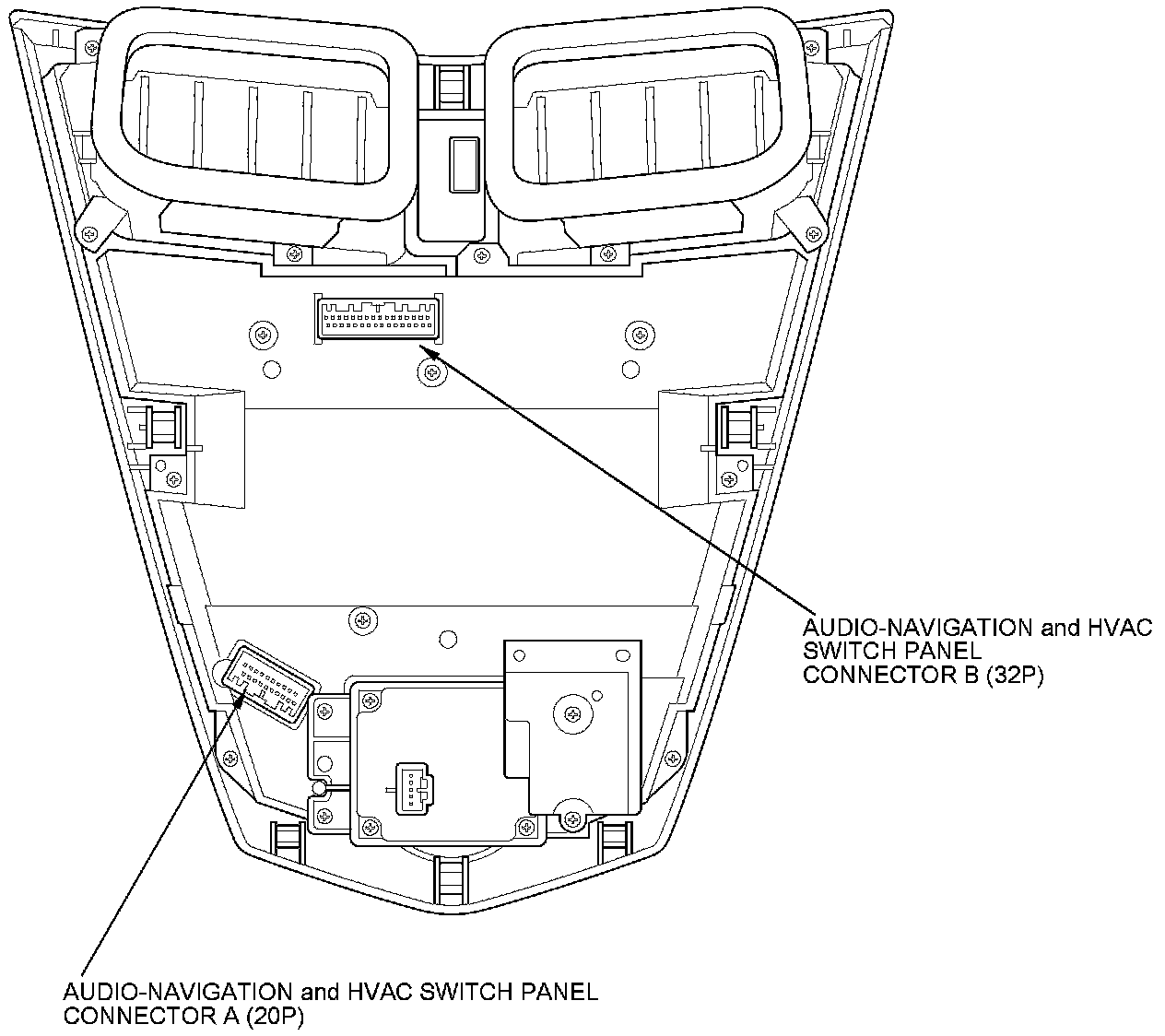

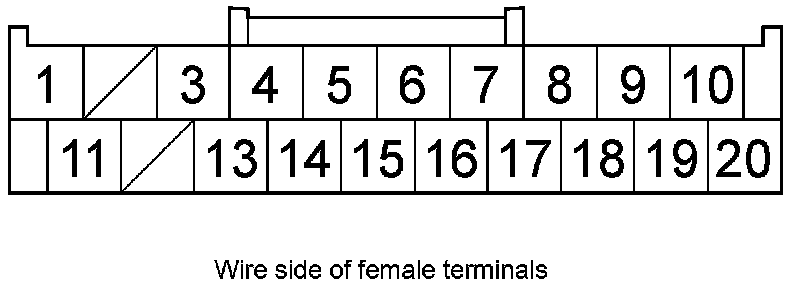

Audio-Navigation and HVAC Switch Panel Connector A (20P)

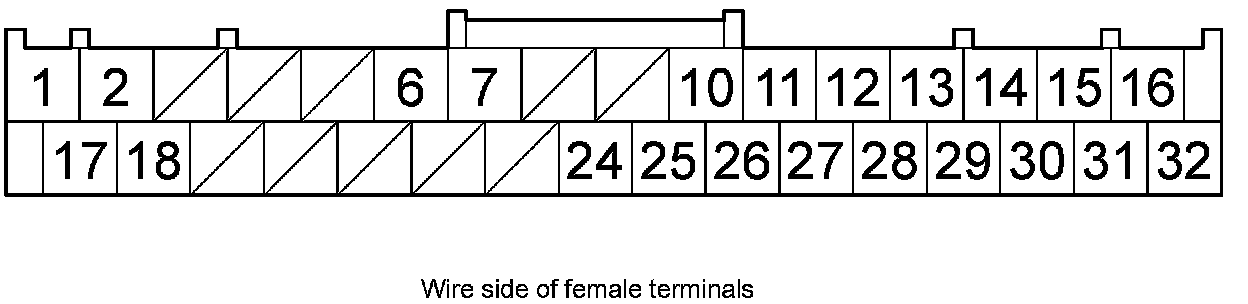

Audio-Navigation and HVAC Switch Panel Connector B (32P)

NOTE: Refer to the climate control circuit diagram for audio-navigation and HVAC switch panel connector B (32P) terminals.

Audio and HVAC Switch Panel for Inputs and Outputs (Without Navigation System)

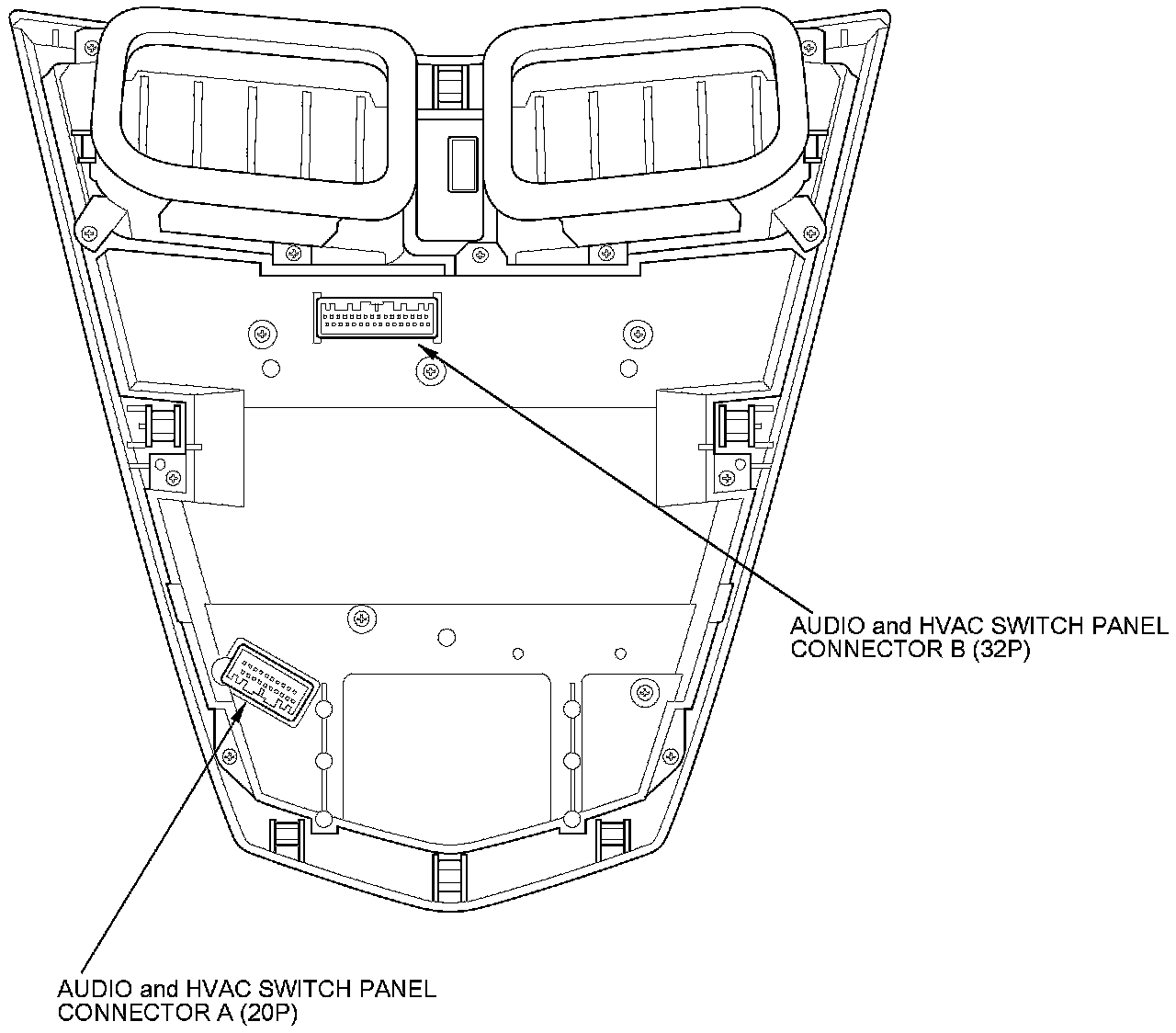

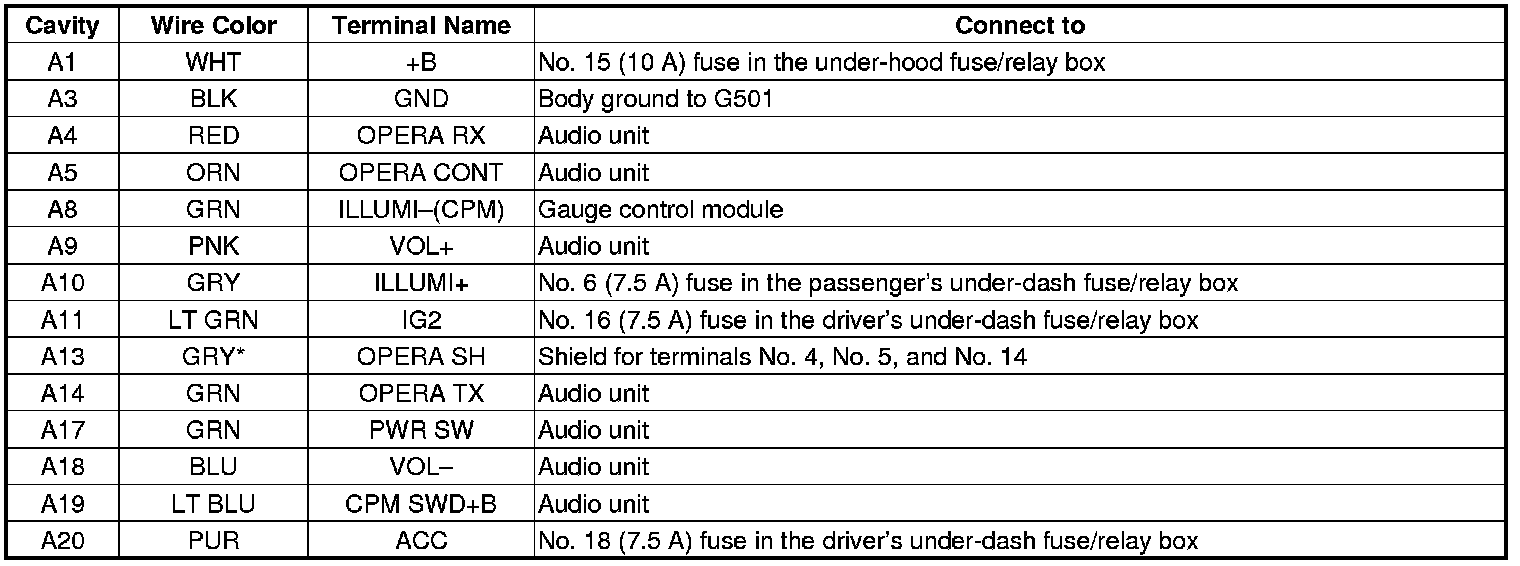

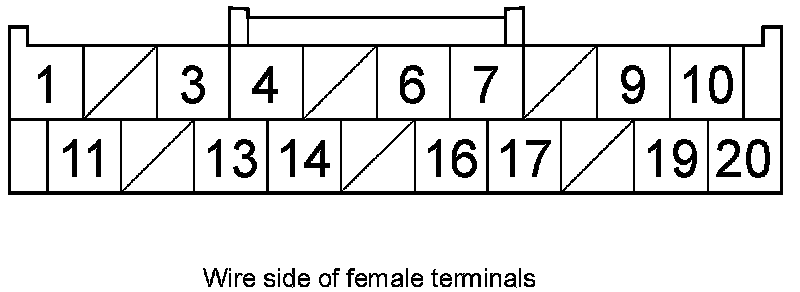

Audio and HVAC Switch Panel Connector A (20P)

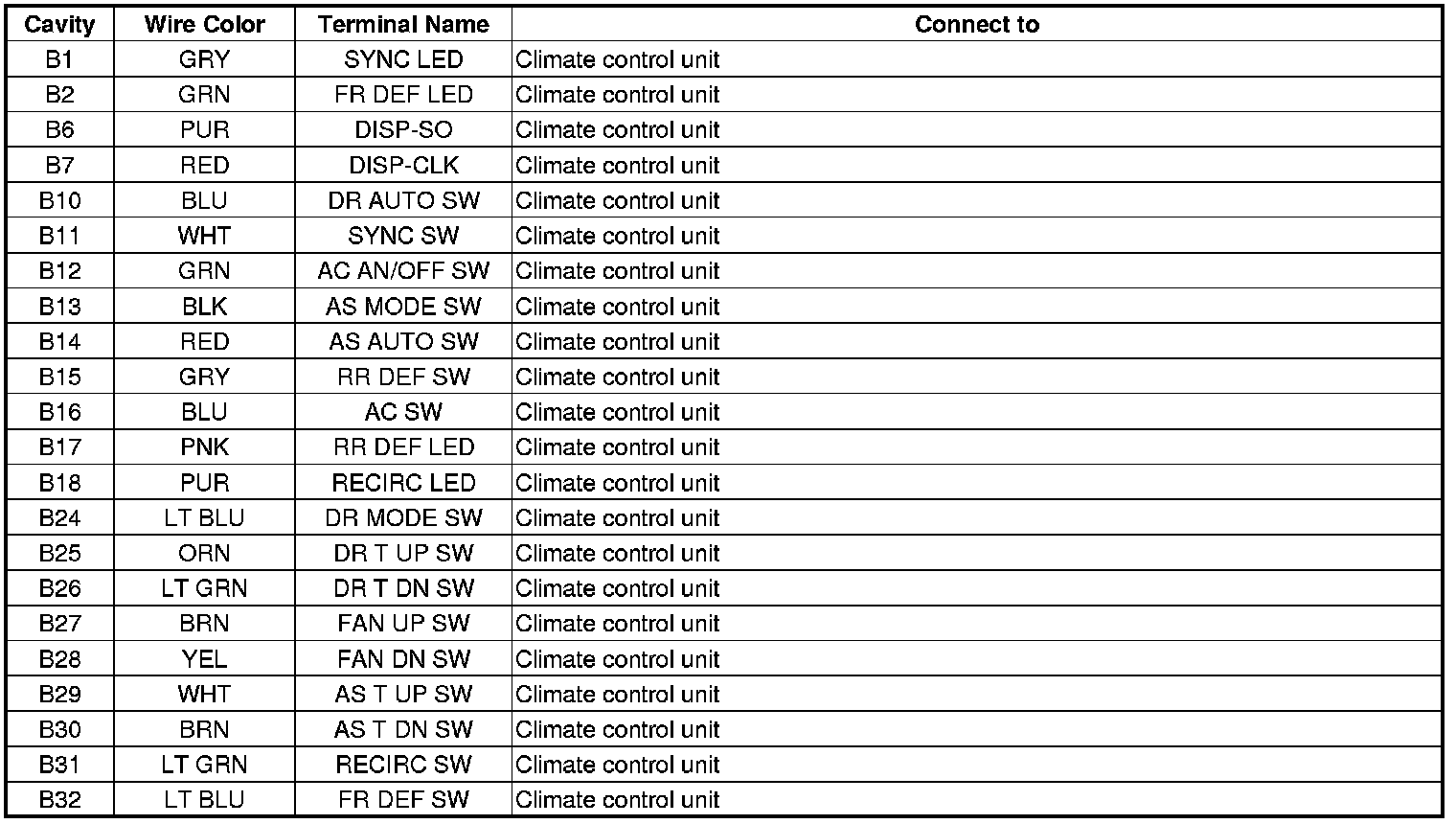

Audio and HVAC Switch Panel Connector B (32P)

NOTE: Refer to the climate control circuit diagram for audio and HVAC switch panel connector B (32P) terminals.

Stereo Amplifier Connector for Inputs and Outputs (With Navigation System)

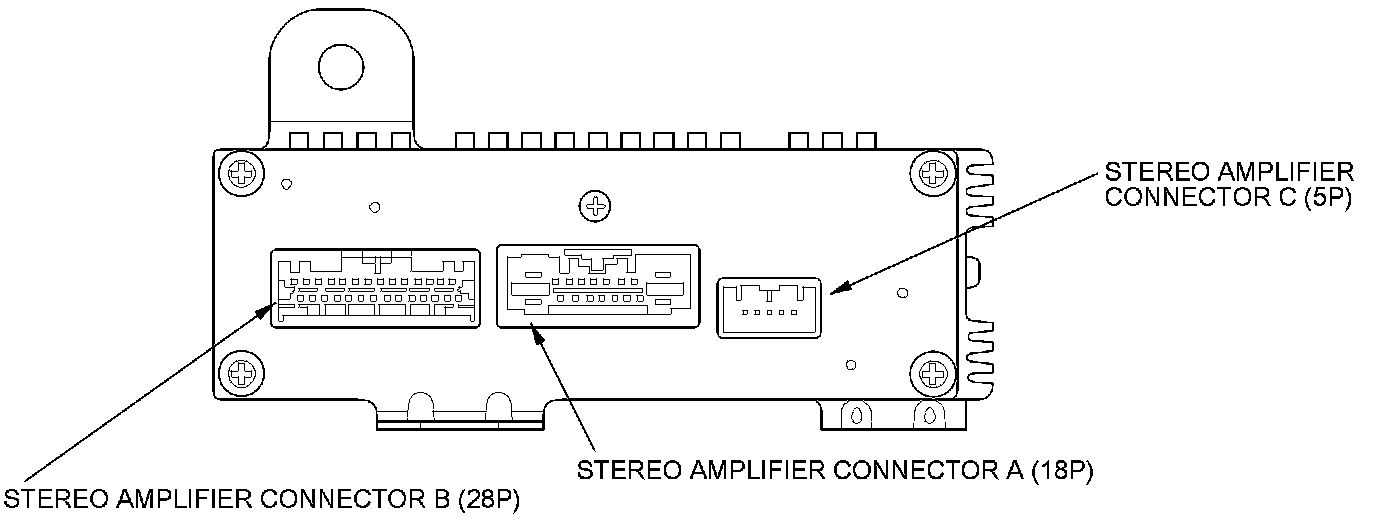

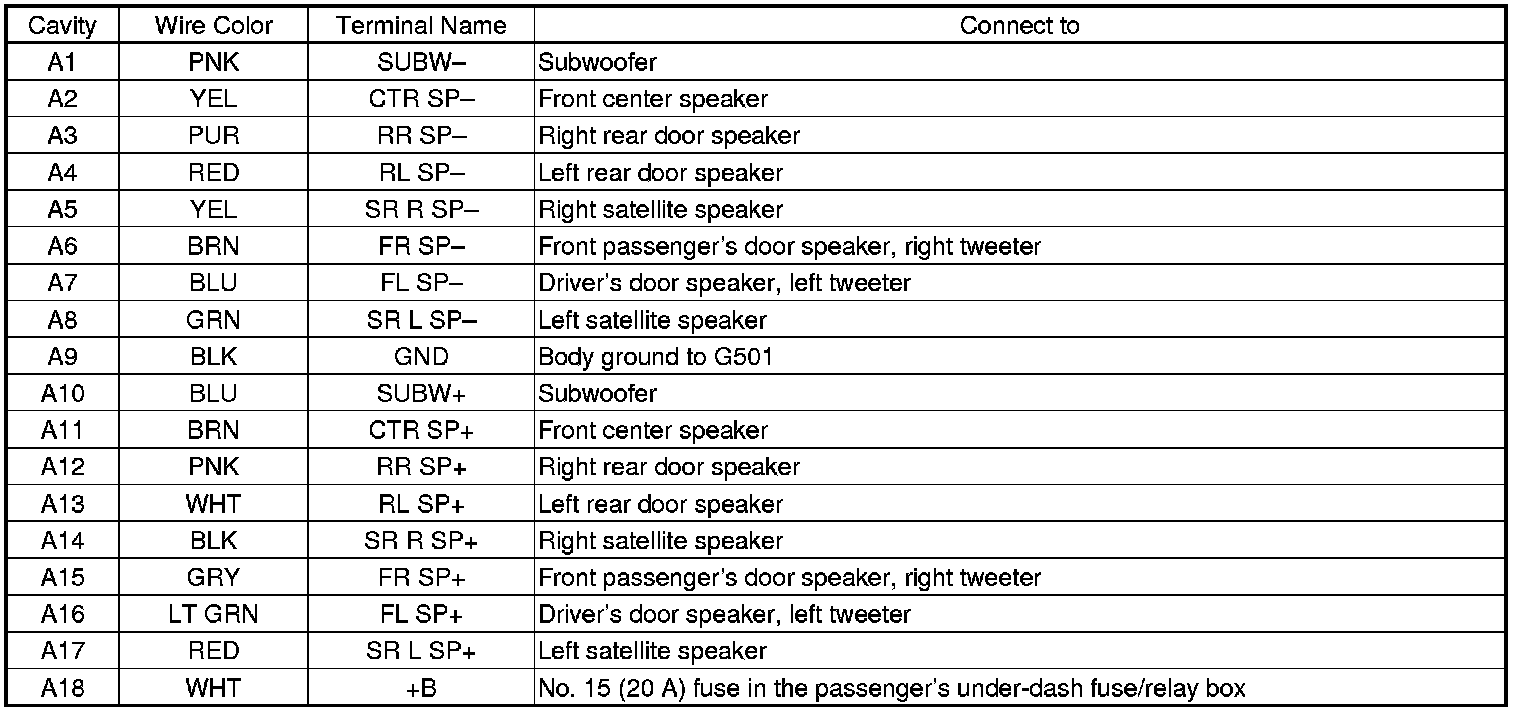

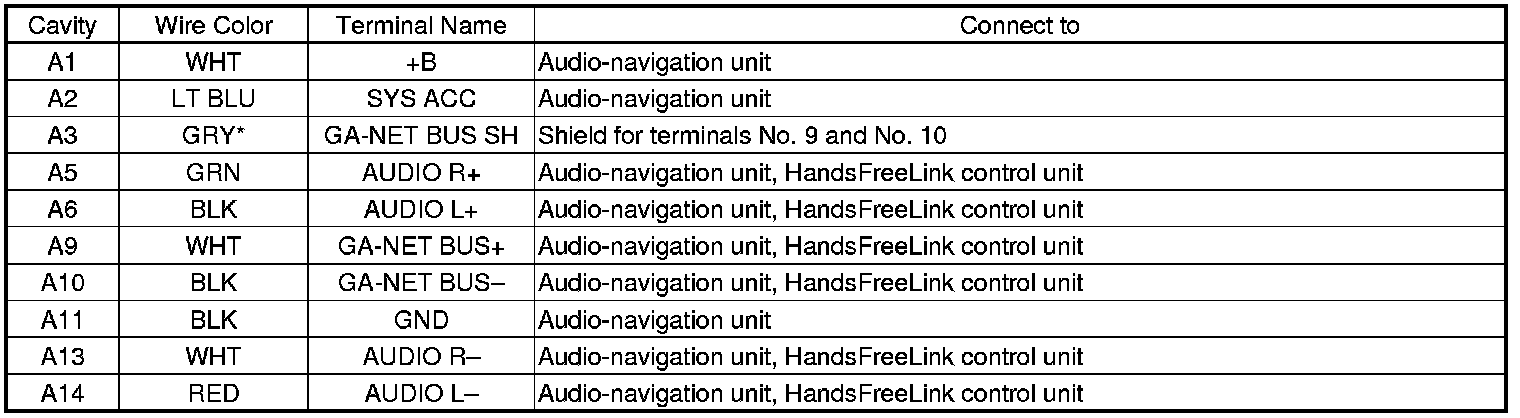

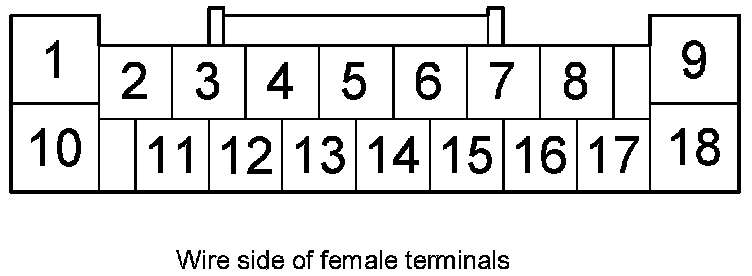

Stereo Amplifier Connector A (18P)

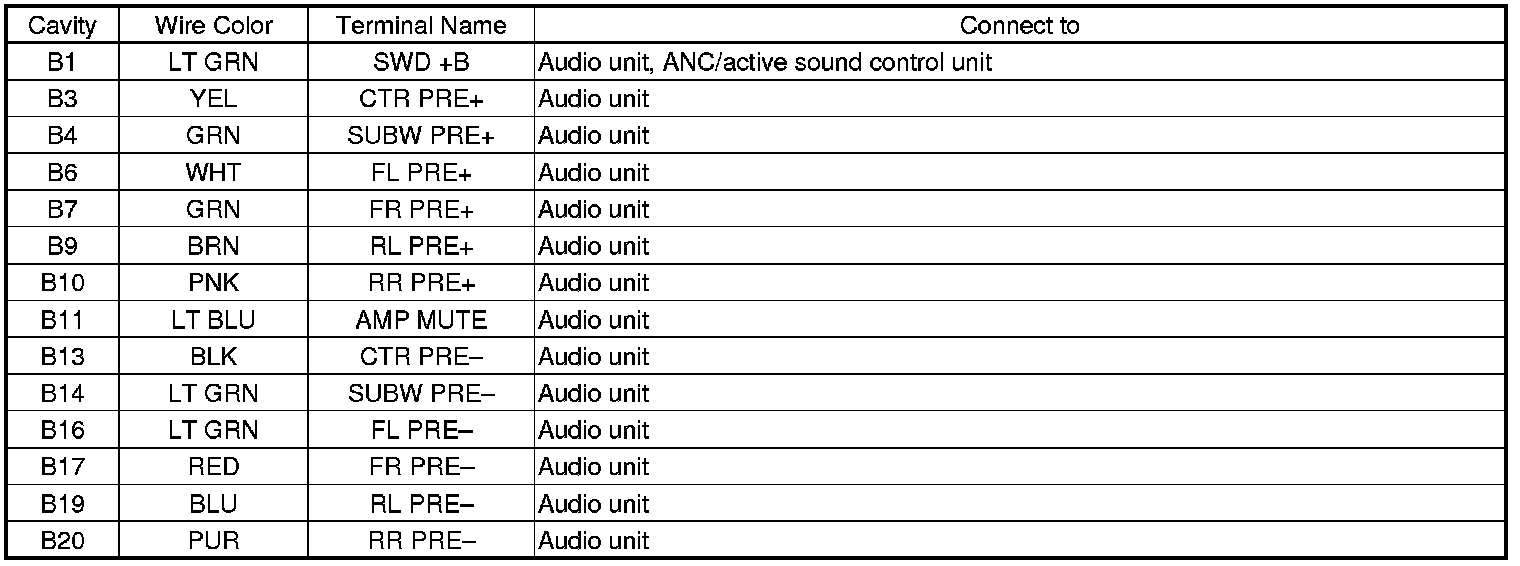

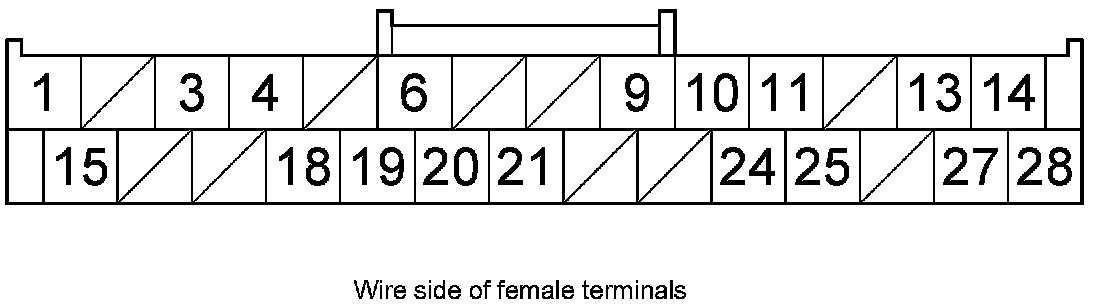

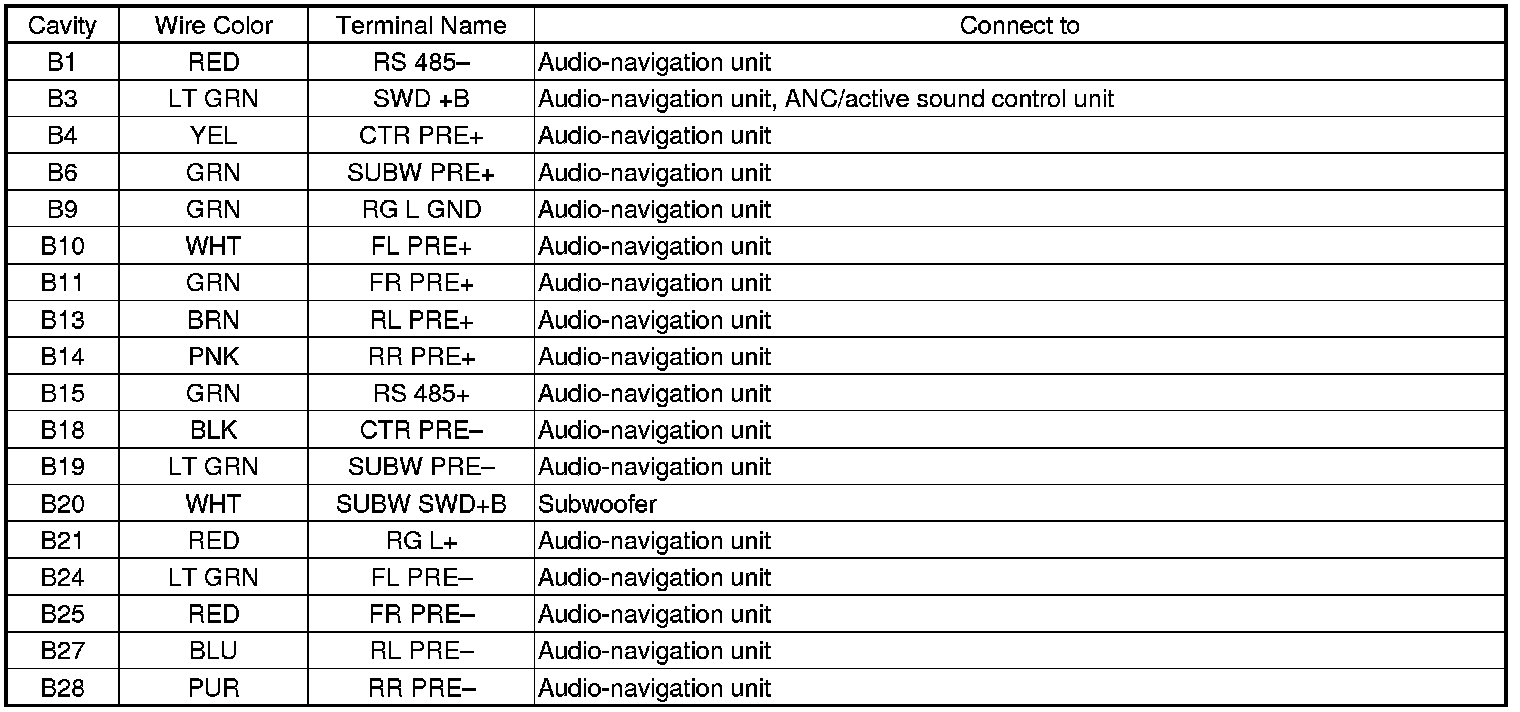

Stereo Amplifier Connector B (28P)

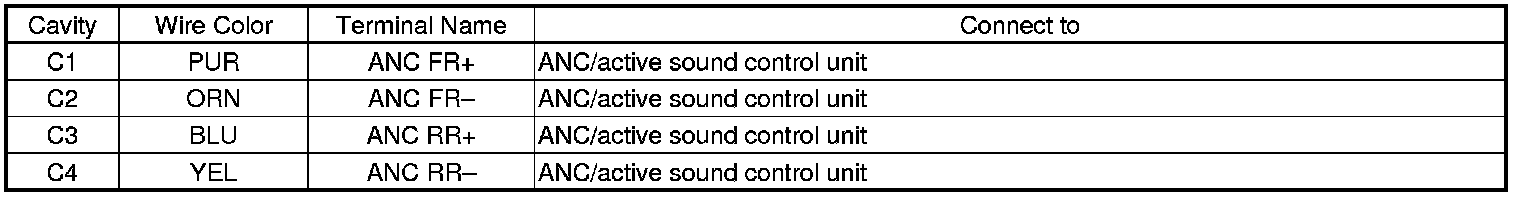

Stereo Amplifier Connector C (5P)

Stereo Amplifier Connector for Inputs and Outputs (Without Navigation System)

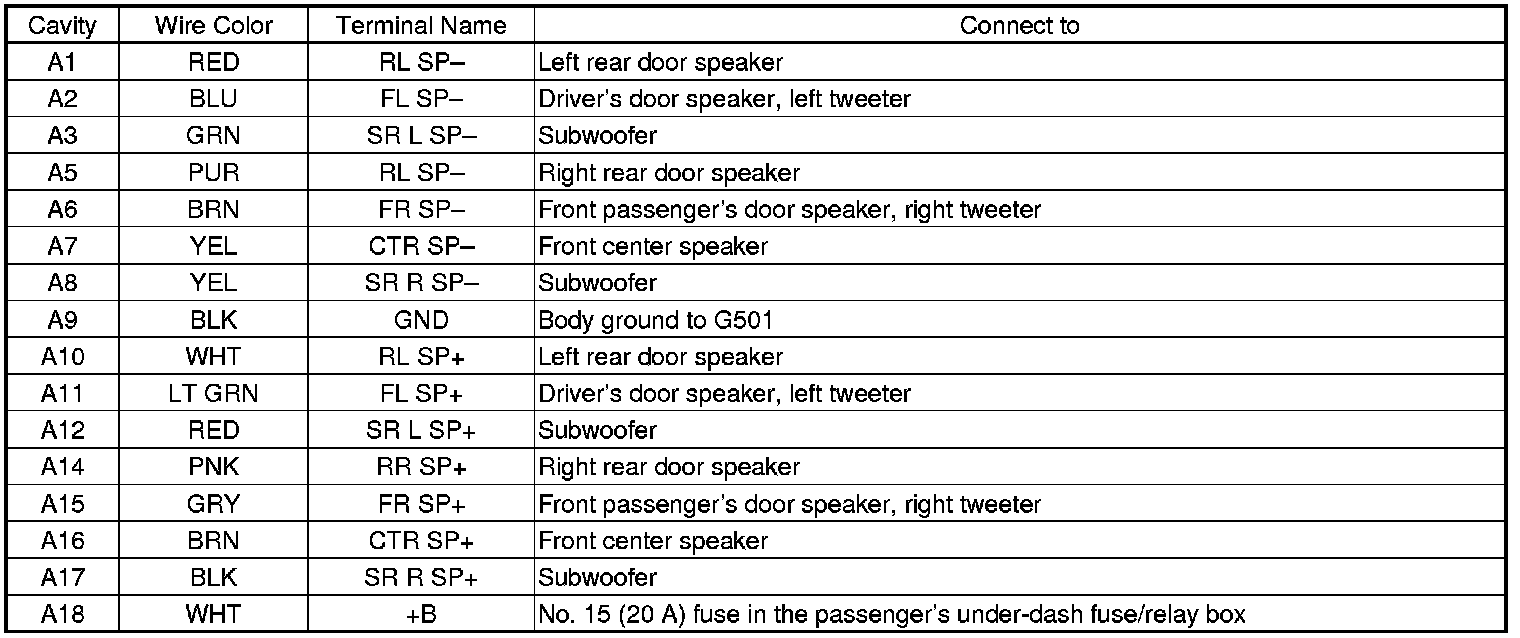

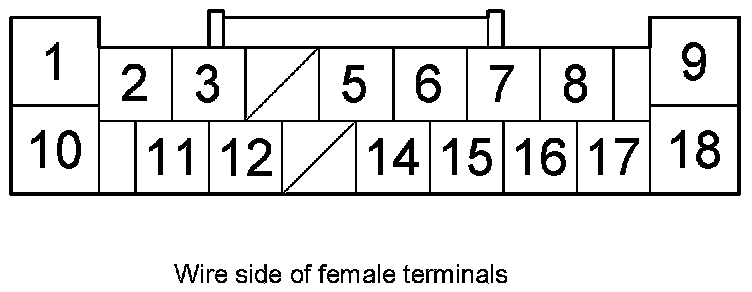

Stereo Amplifier Connector A (18P)

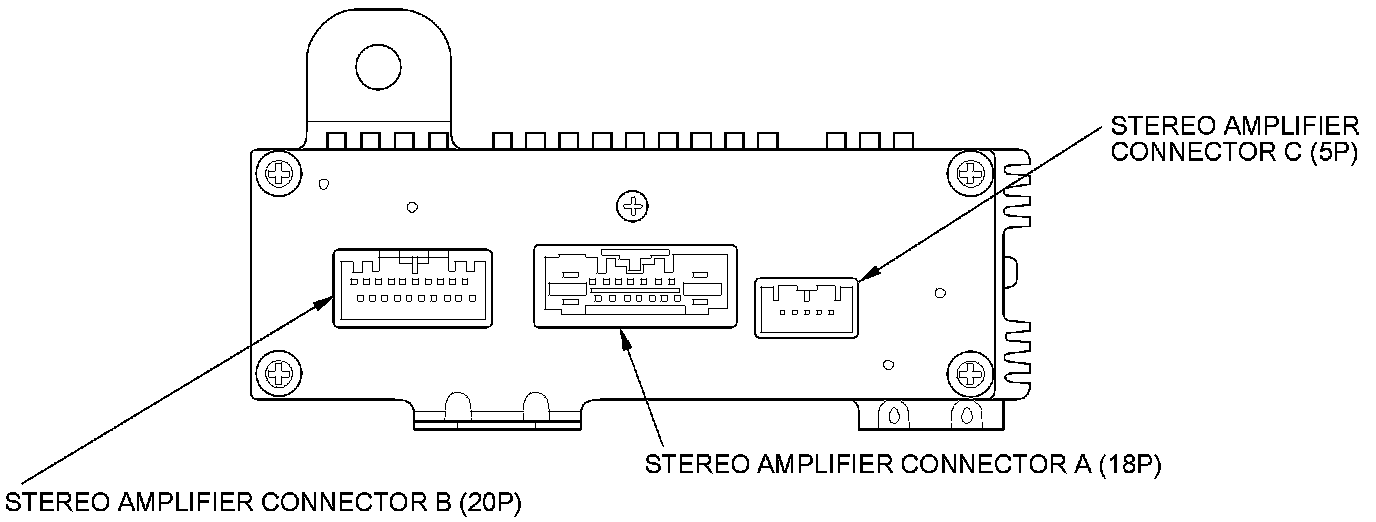

Stereo Amplifier Connector B (20P)

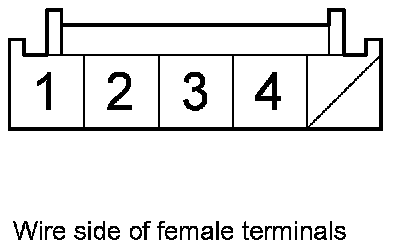

Stereo Amplifier Connector C (5P)

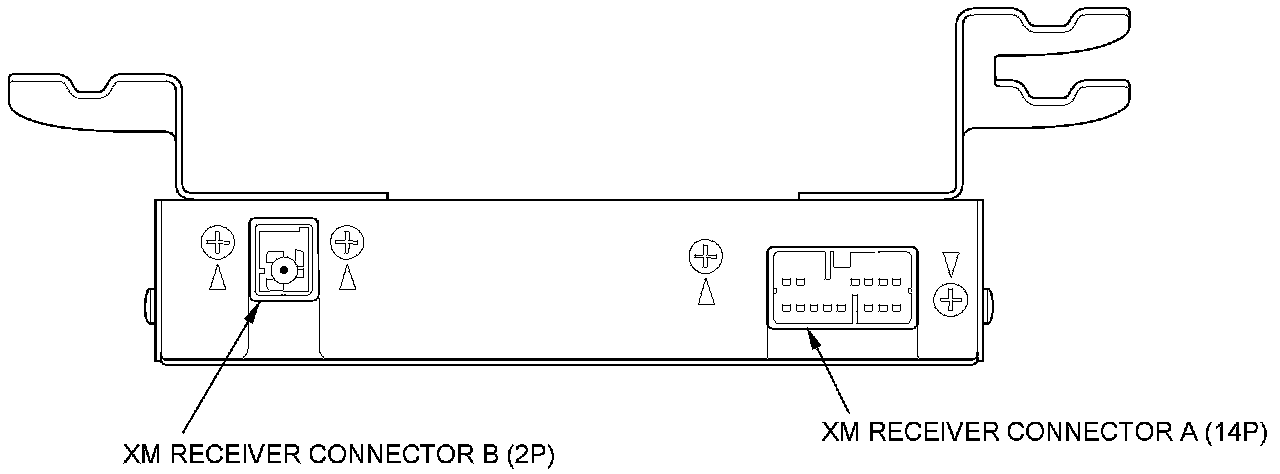

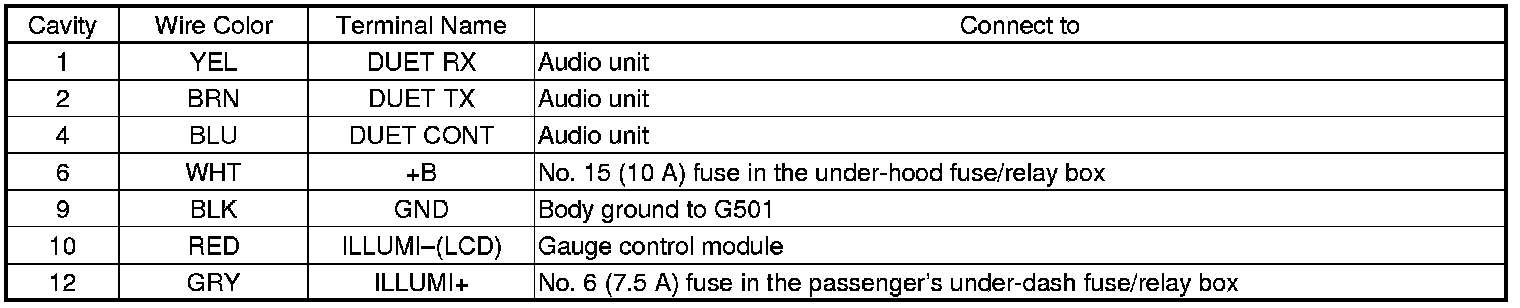

XM Receiver Connector for Inputs and Outputs (Without AcuraLink)

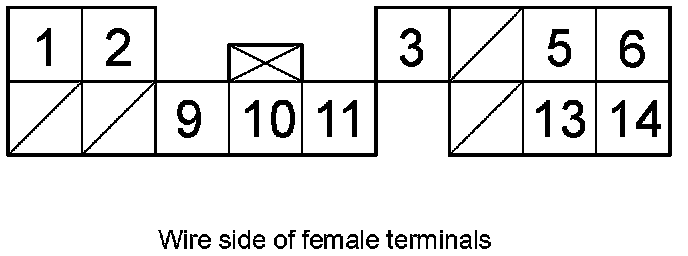

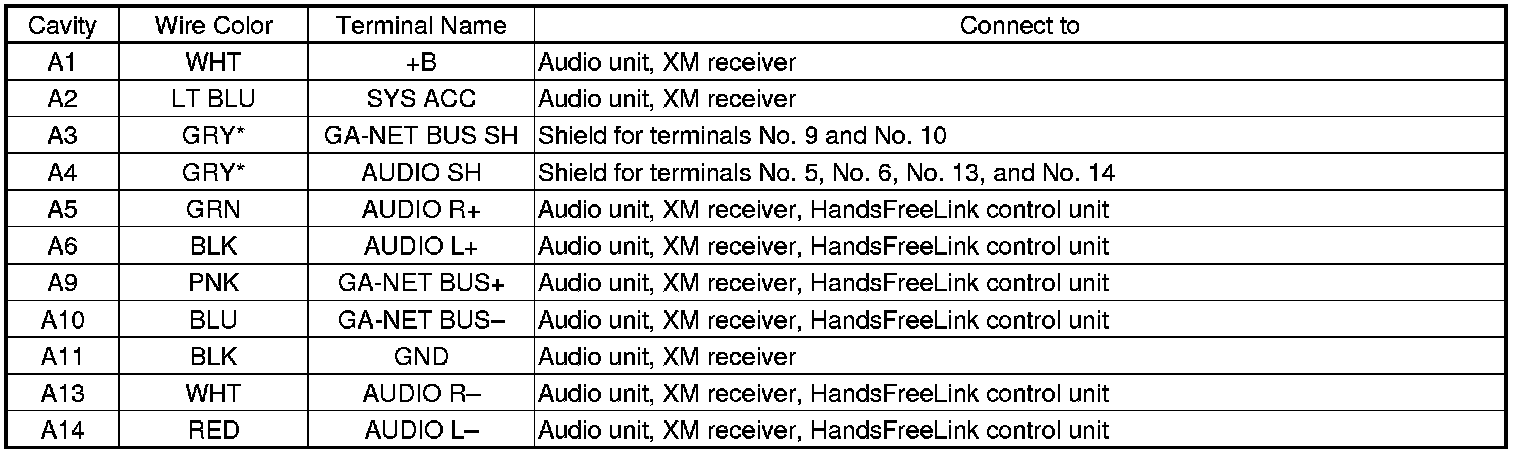

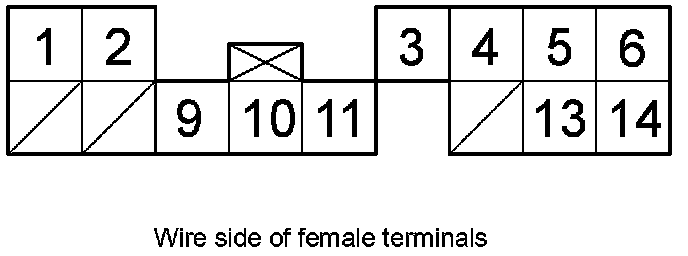

XM Receiver Connector A (14P)

With Navigation System (Canada Models)

Without Navigation System

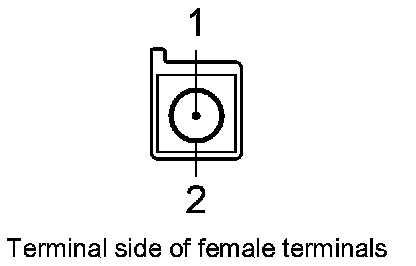

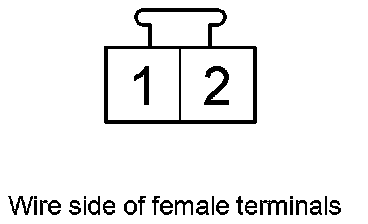

XM Receiver Connector B (2P)

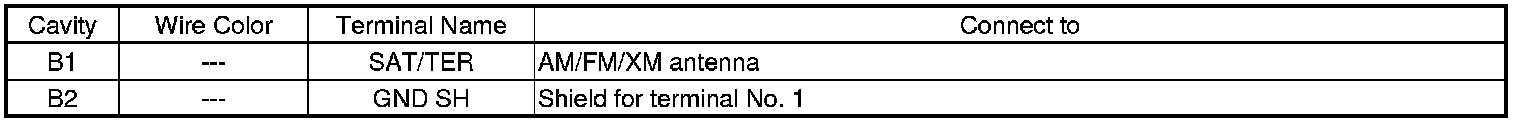

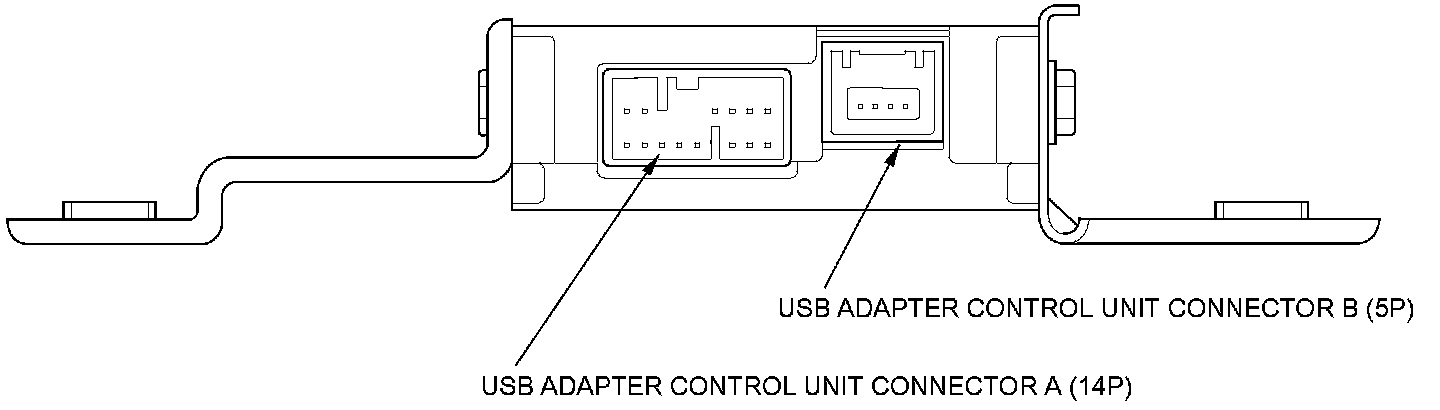

USB Adapter Control Unit for Inputs and Outputs (Without Navigation System)

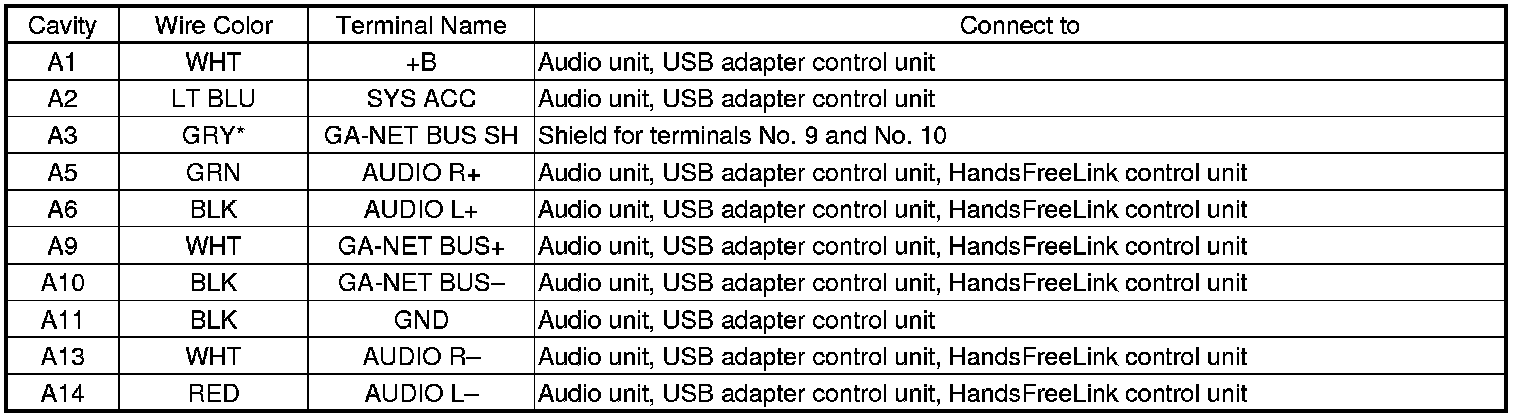

USB Adapter Control Unit Connector A (14P)

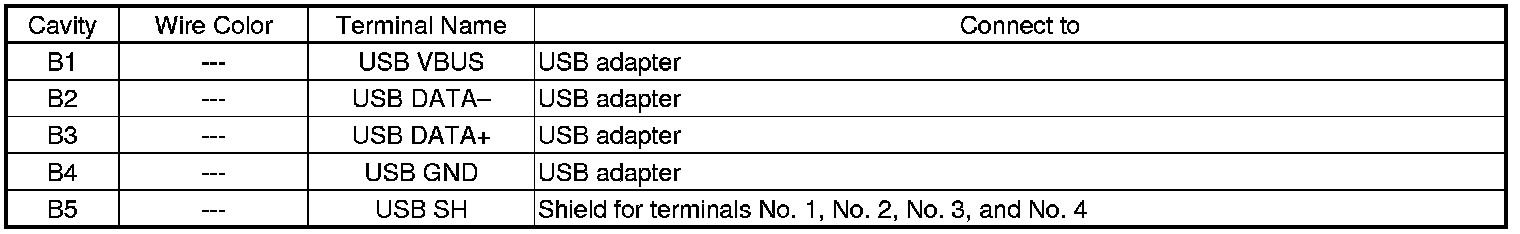

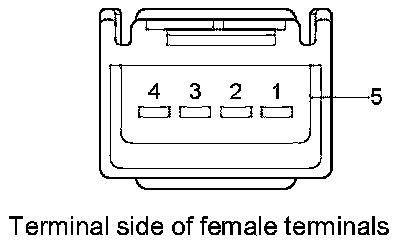

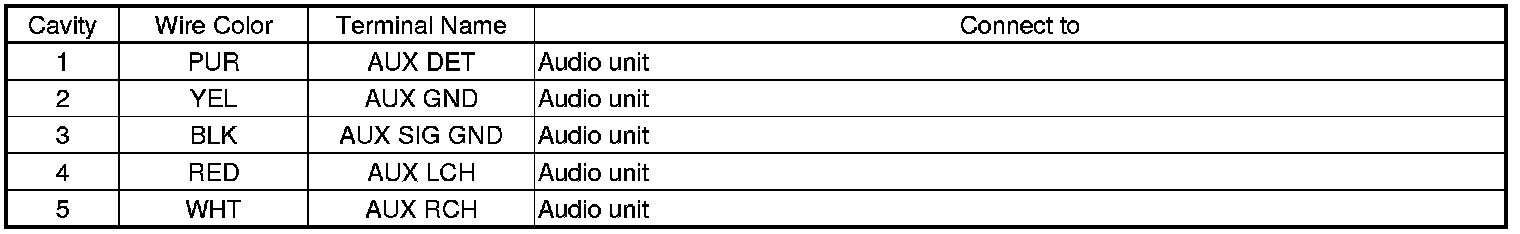

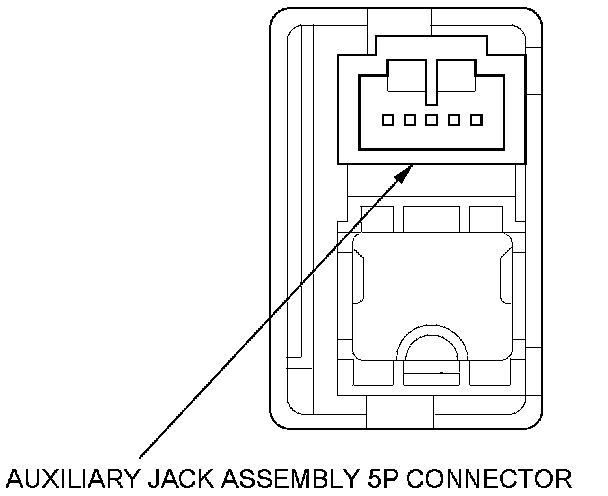

USB Adapter Control Unit Connector B (5P)

ANC/Active Sound Control Unit Connector for Inputs and Outputs

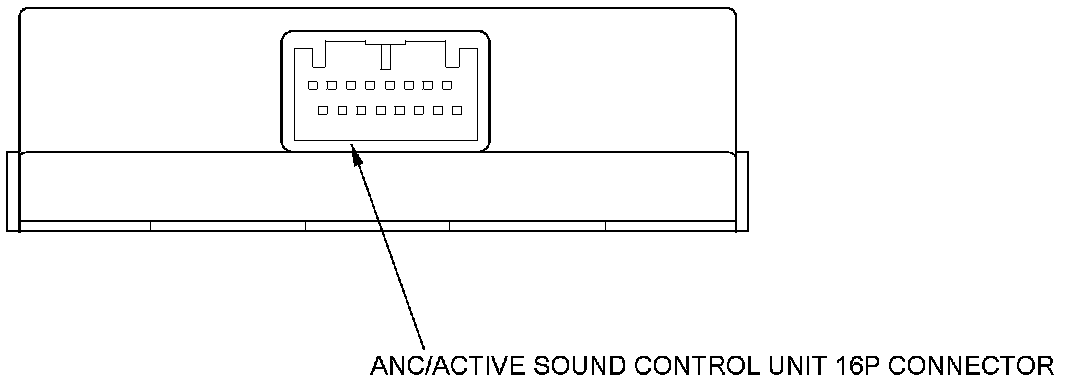

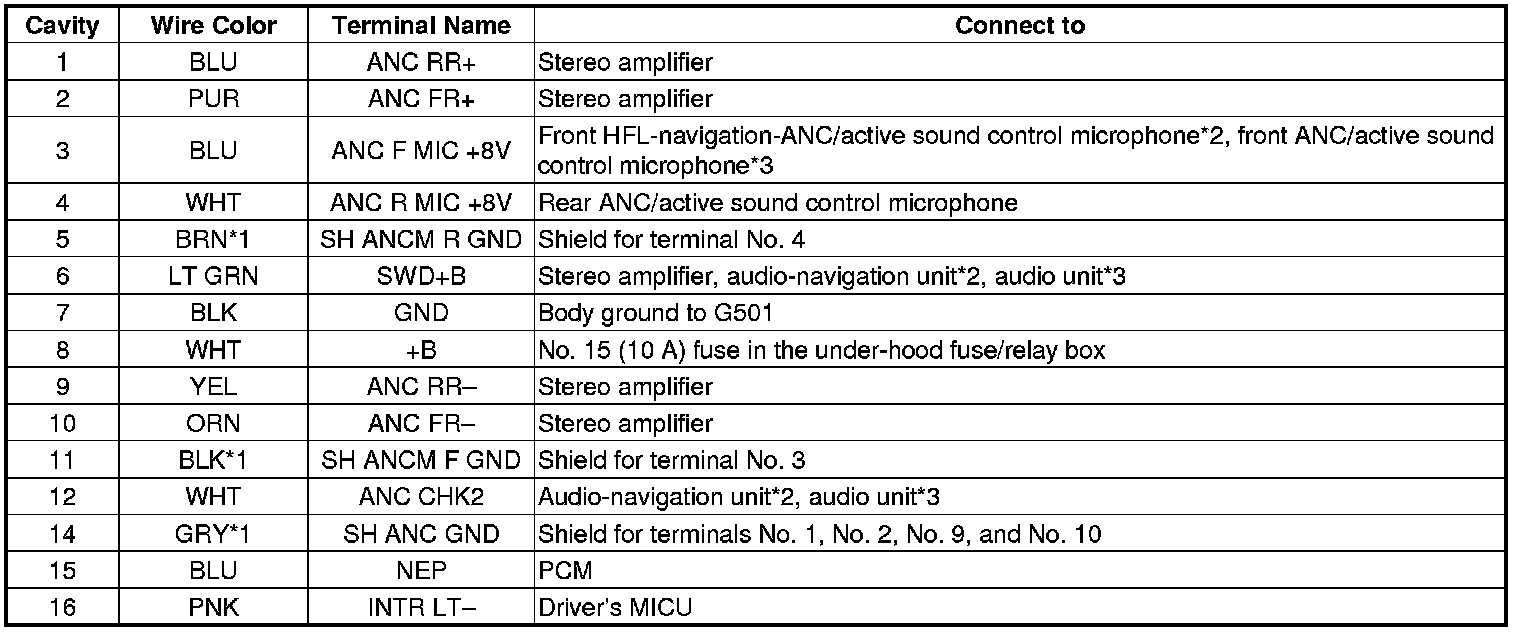

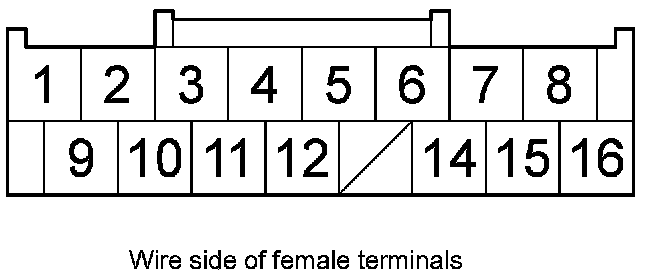

ANC/Active Sound Control Unit 16P Connector

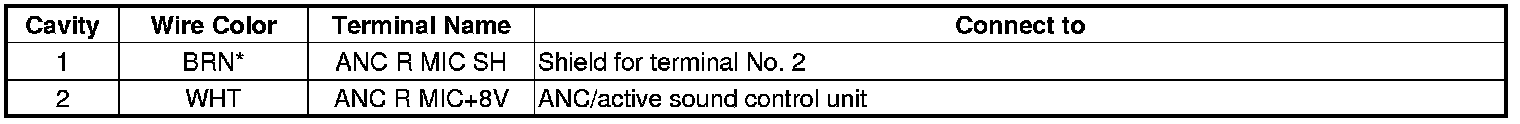

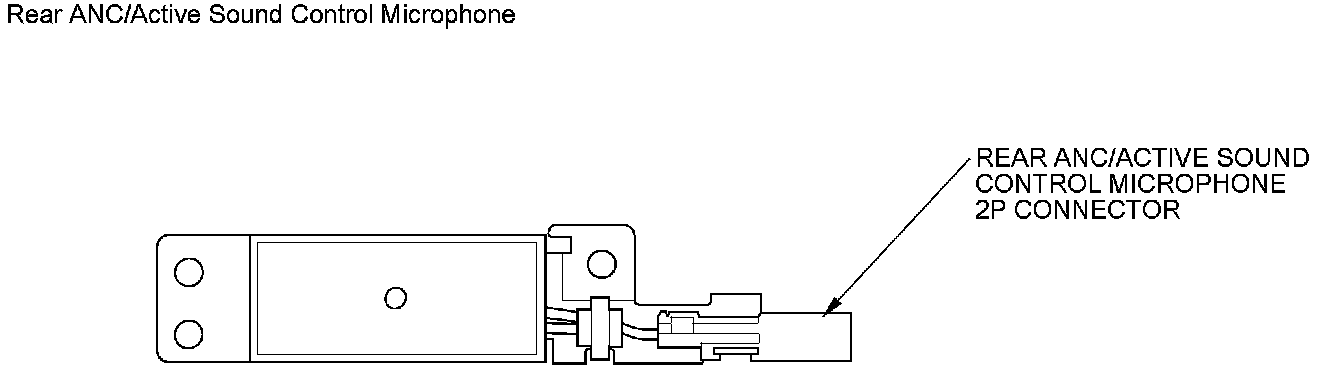

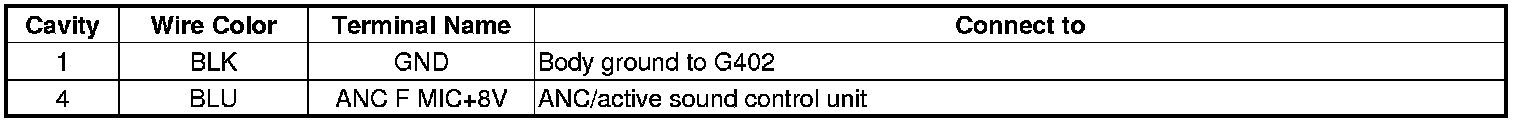

ANC/Active Sound Control Microphone Connector for Inputs and Outputs

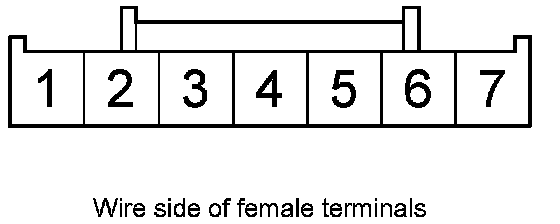

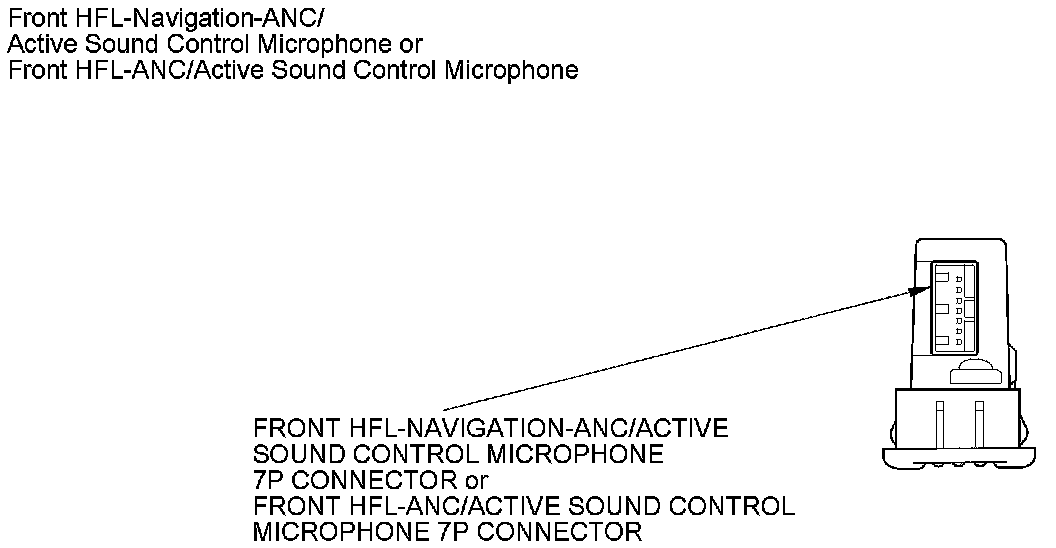

Front HFL-Navigation-ANC/Active Sound Control Microphone 7P Connector or Front HFL-ANC/Active Sound Control Microphone 7P Connector

NOTE: Refer to the navigation system section or HandsFreeLink system section for the terminals inputs and outputs not shown.
