USB Adapter Control Unit Replacement (Without Navigation System)

USB Adapter Control Unit Replacement

Without Navigation System

1. Remove the center console Center Console Removal/Installation.

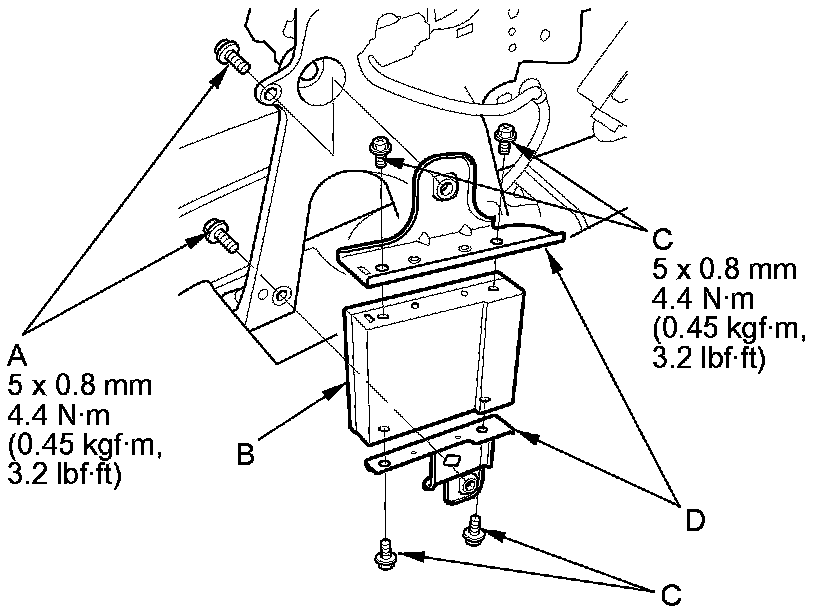

2. Remove the bolts (A) and the USB adapter control unit (B), then remove the bolts (C) and brackets (D) from the USB adapter control unit.





3. Install the USB adapter control unit in the reverse order of removal.
