Cellular Phone: Description and Operation




HandsFreeLink System Description

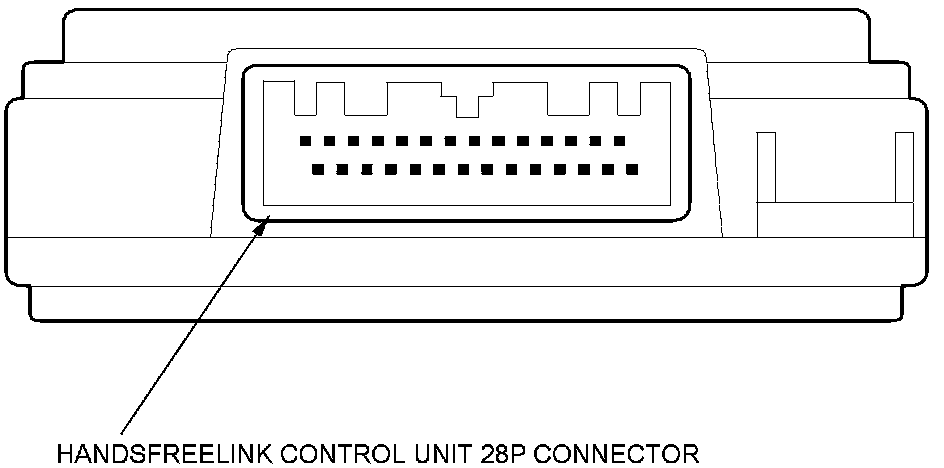

HandsFreeLink Control Unit Inputs and Outputs

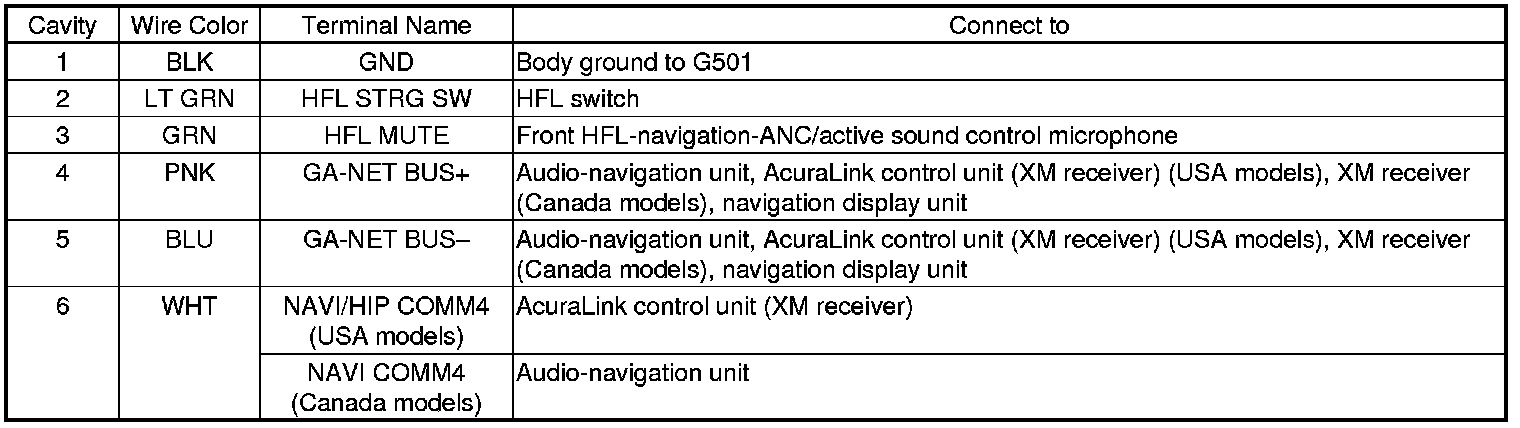

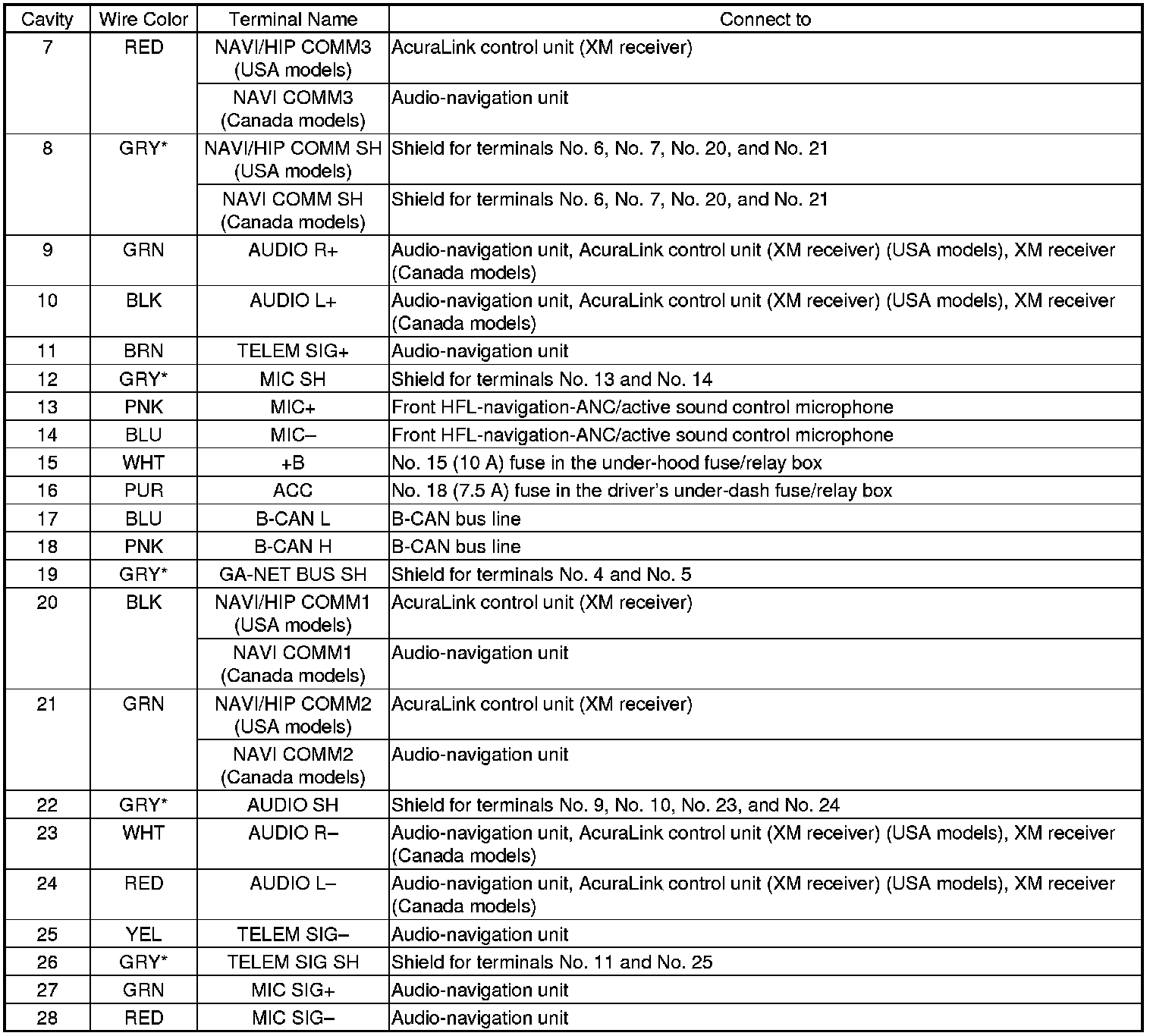

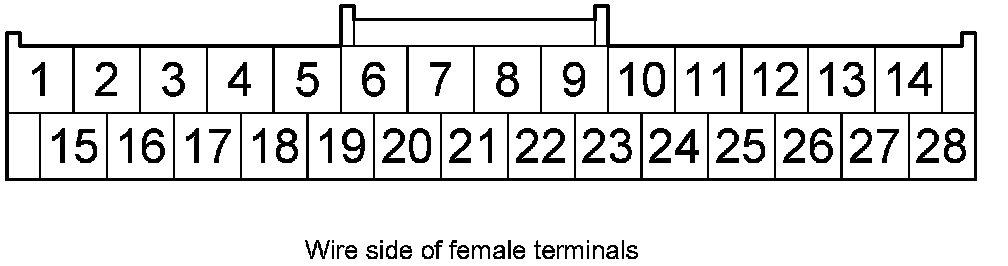

HandsFreeLink Control Unit 28P Connector (With Navigation System)

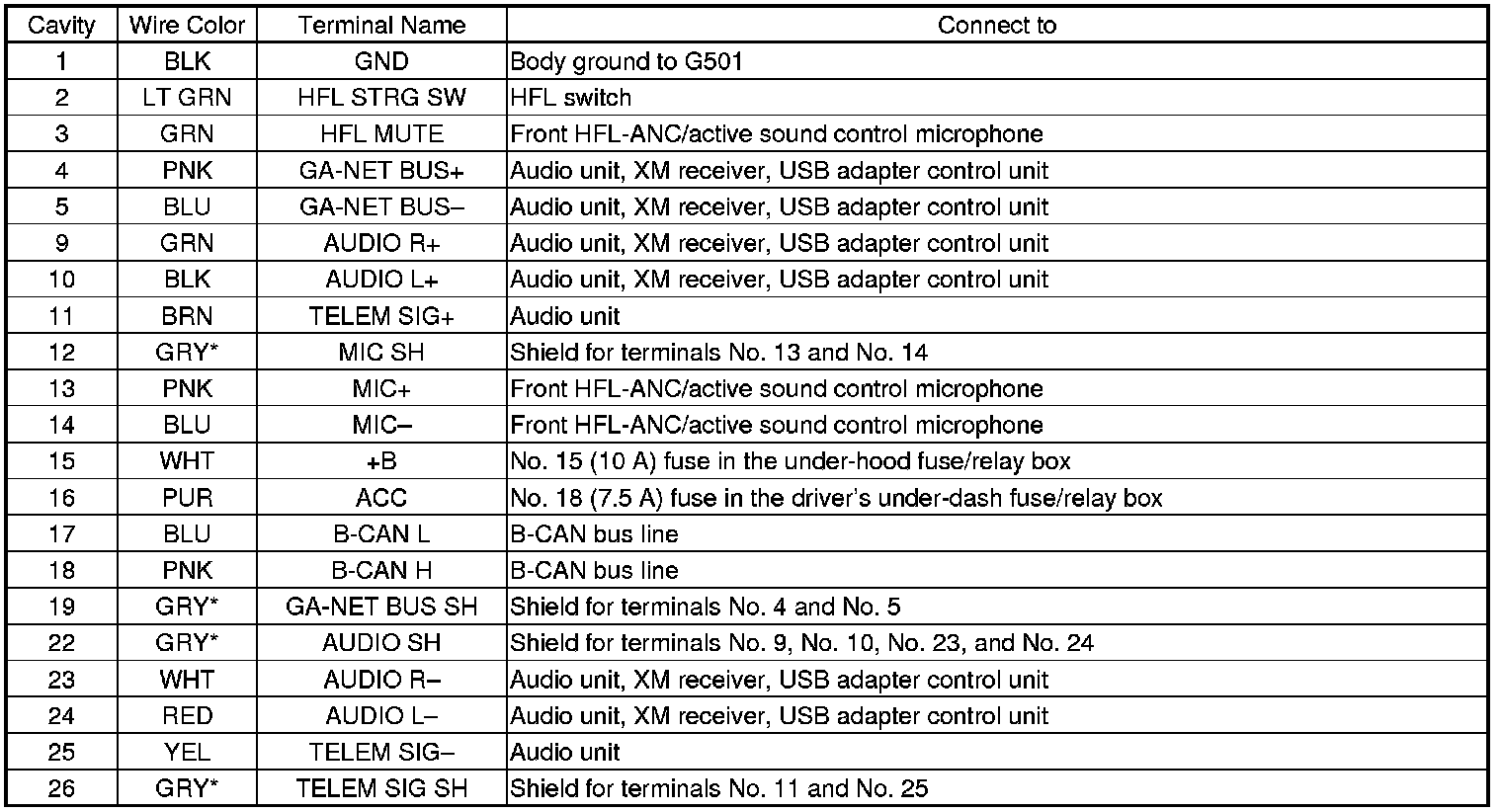

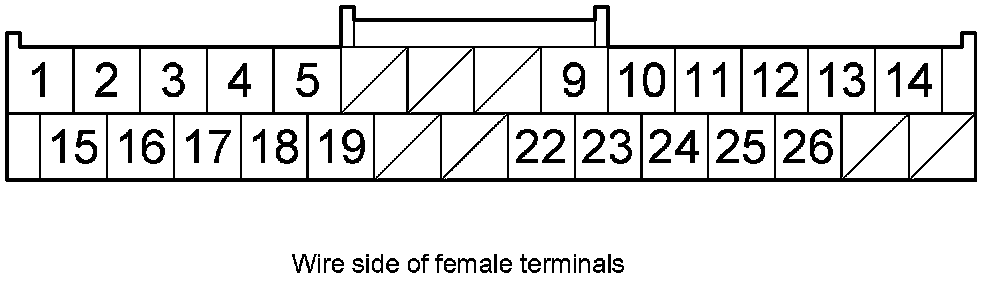

HandsFreeLink Control Unit 28P Connector (Without Navigation System)
