Cabin Noise Cancellation Control Module: Service and Repair

ANC/Active Sound Control Unit Removal/Installation

1. Remove the front seat (passenger's) Front Seat Removal/Installation.

2. Remove the passenger's console carpet trim Overhaul.

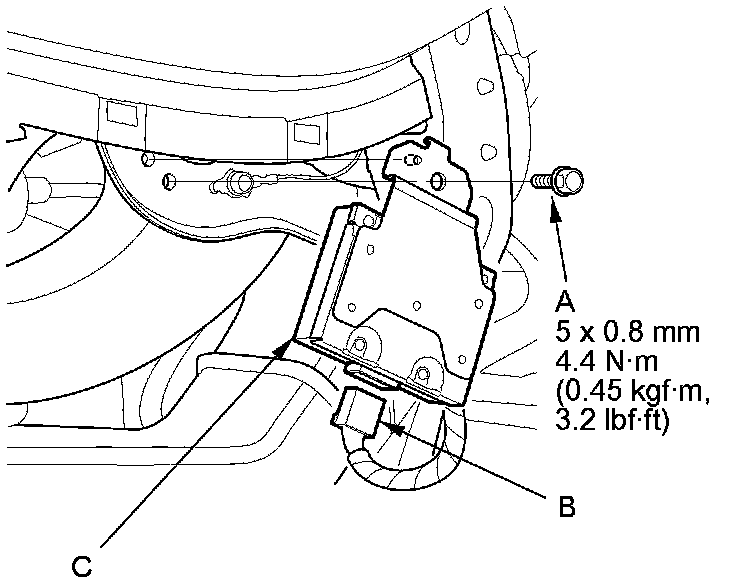

3. Remove the bolt (A), and disconnect the connector (B) from the ANC/active sound control unit (C), and remove it.





4. Install the unit in the reverse order of removal.
