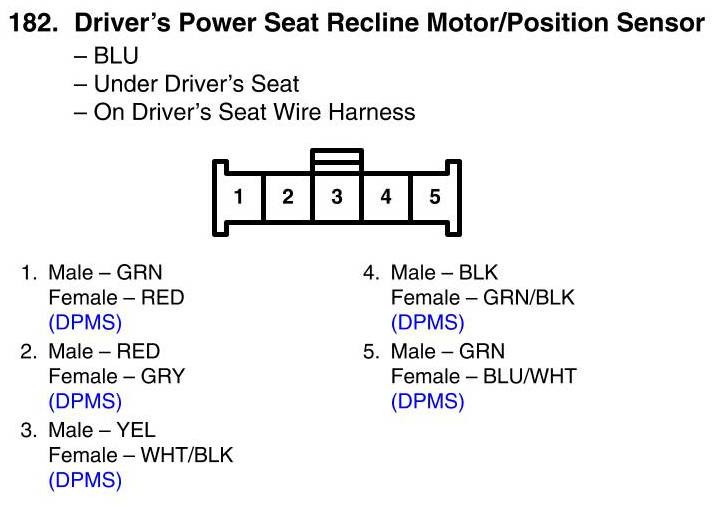

View 182 - Driver's Power Seat Recline Motor/Position Sensor Connector View
View 182 - Driver's Power Seat Recline Motor/Position Sensor Connector View
