Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Acura
>>
2010
>>
TSX V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Input / Output Jack, Entertainment System
>>

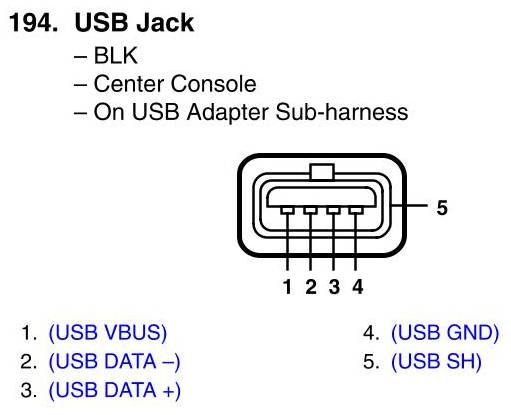

USB Jack Connector View
USB Jack Connector View
