USB Jack Replacement

USB Jack Replacement

1. Remove the center console. Center Console Removal/Installation

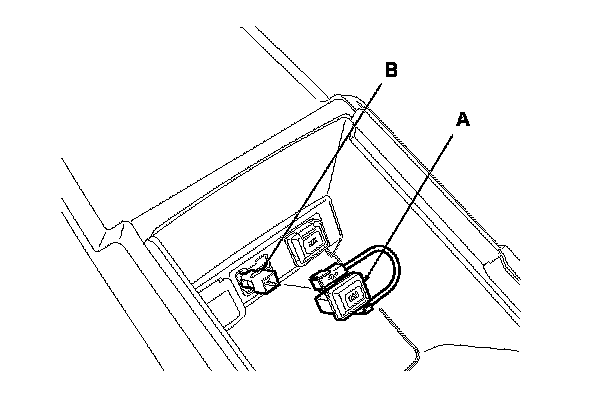

2. Pull out the USB jack (A) from the center console, then disconnect the USB adapter cable connector (B).

3. Install the USB jack in the reverse order of removal.
