Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Acura
>>
2010
>>
TL FWD V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>

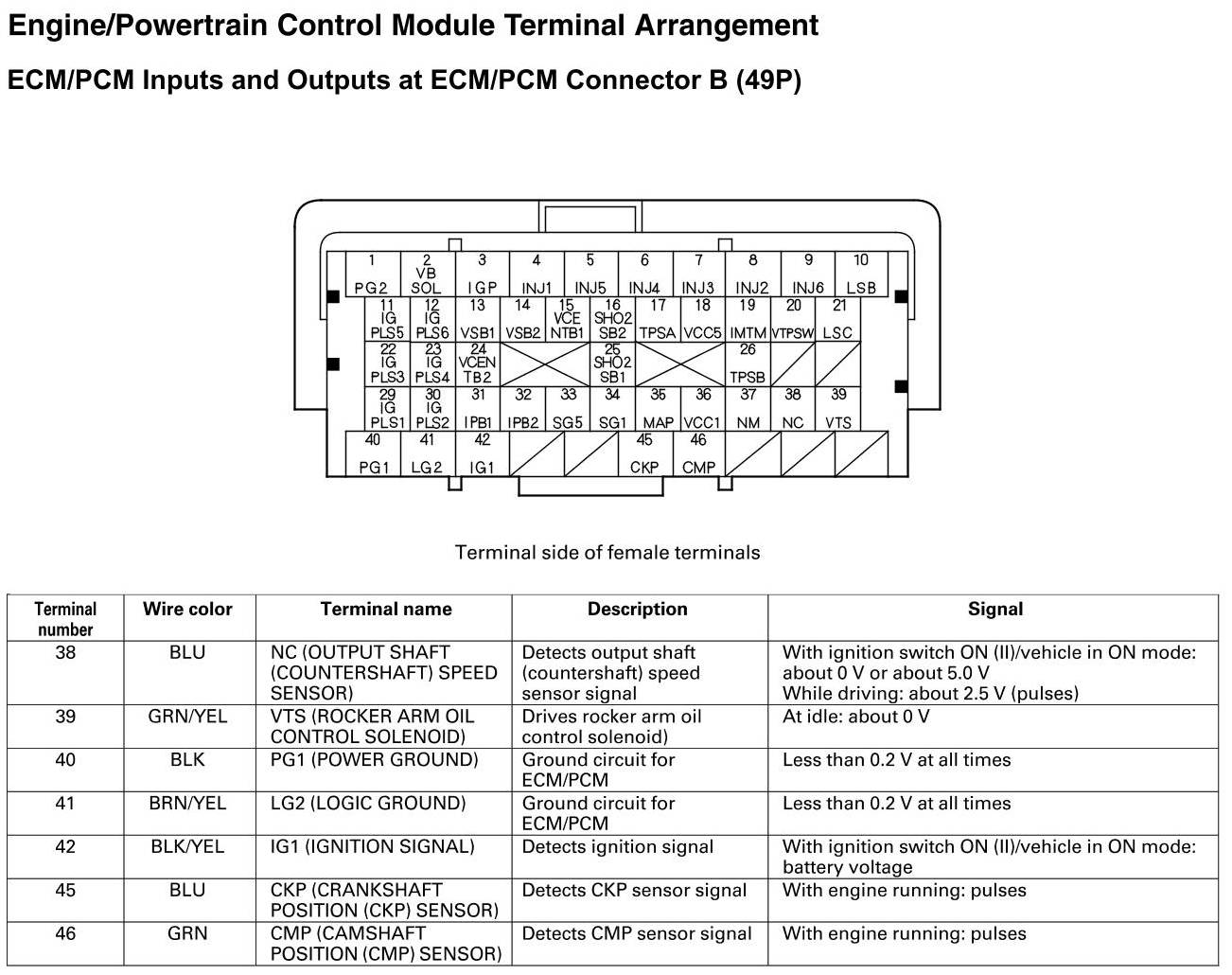

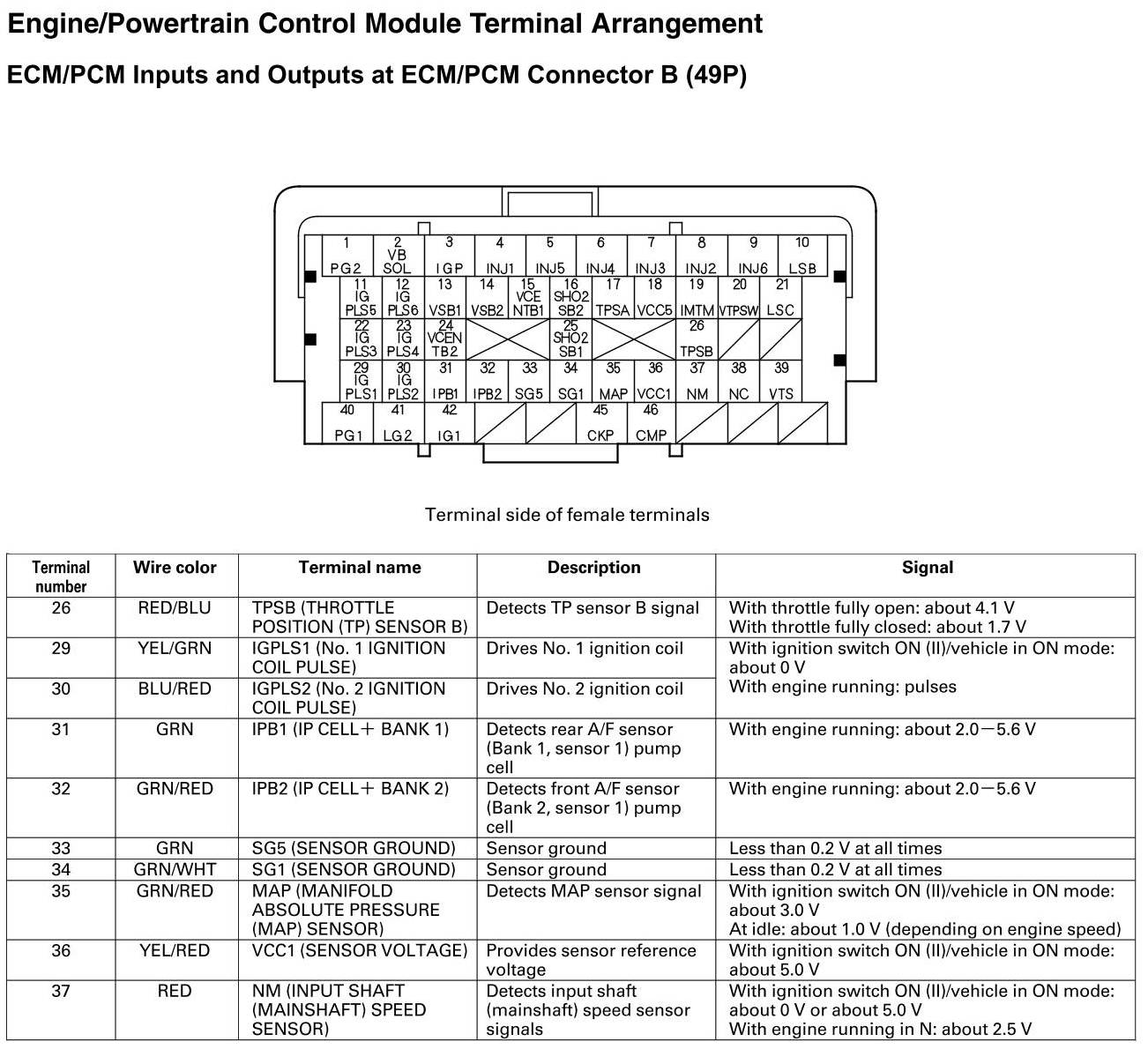

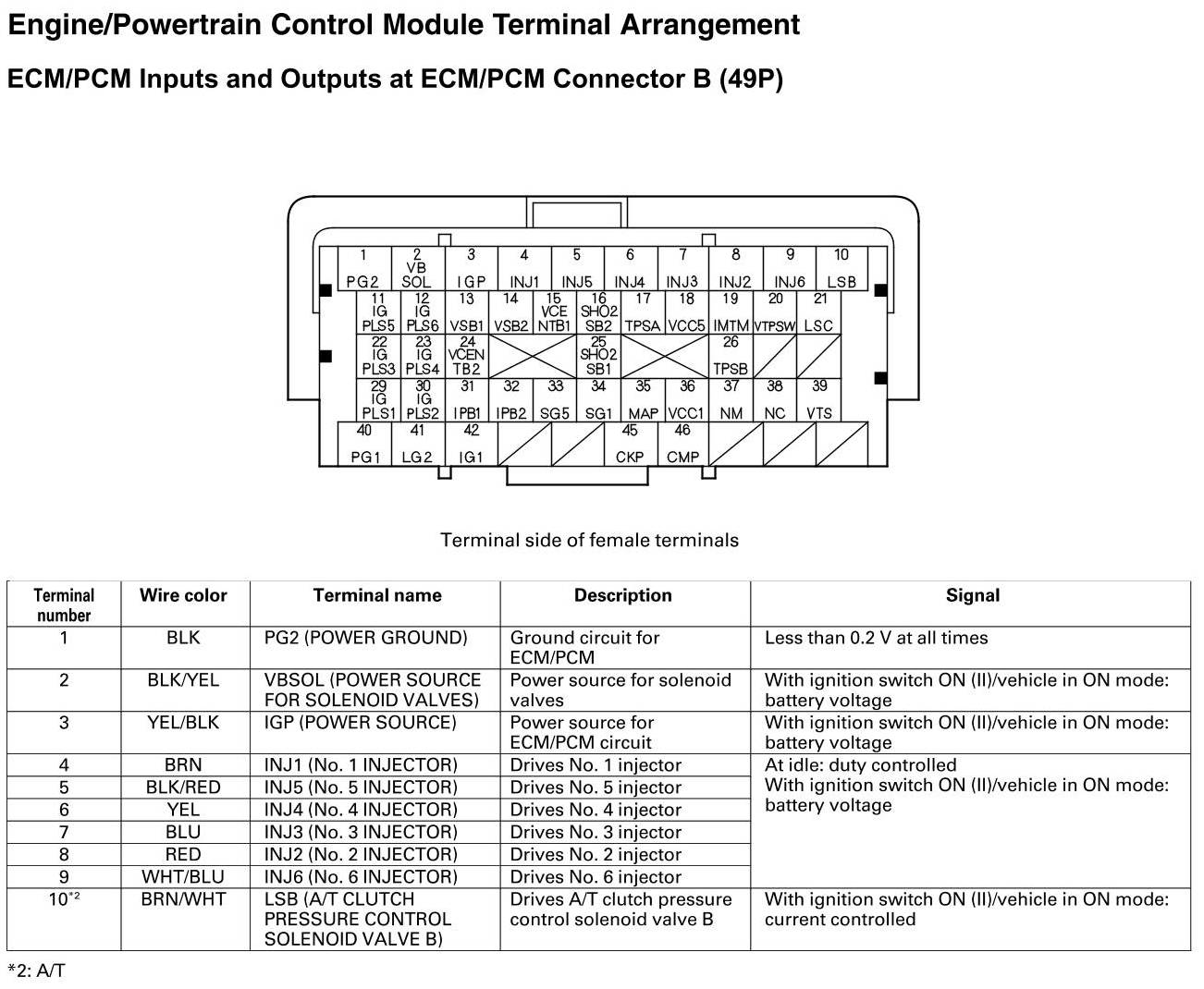

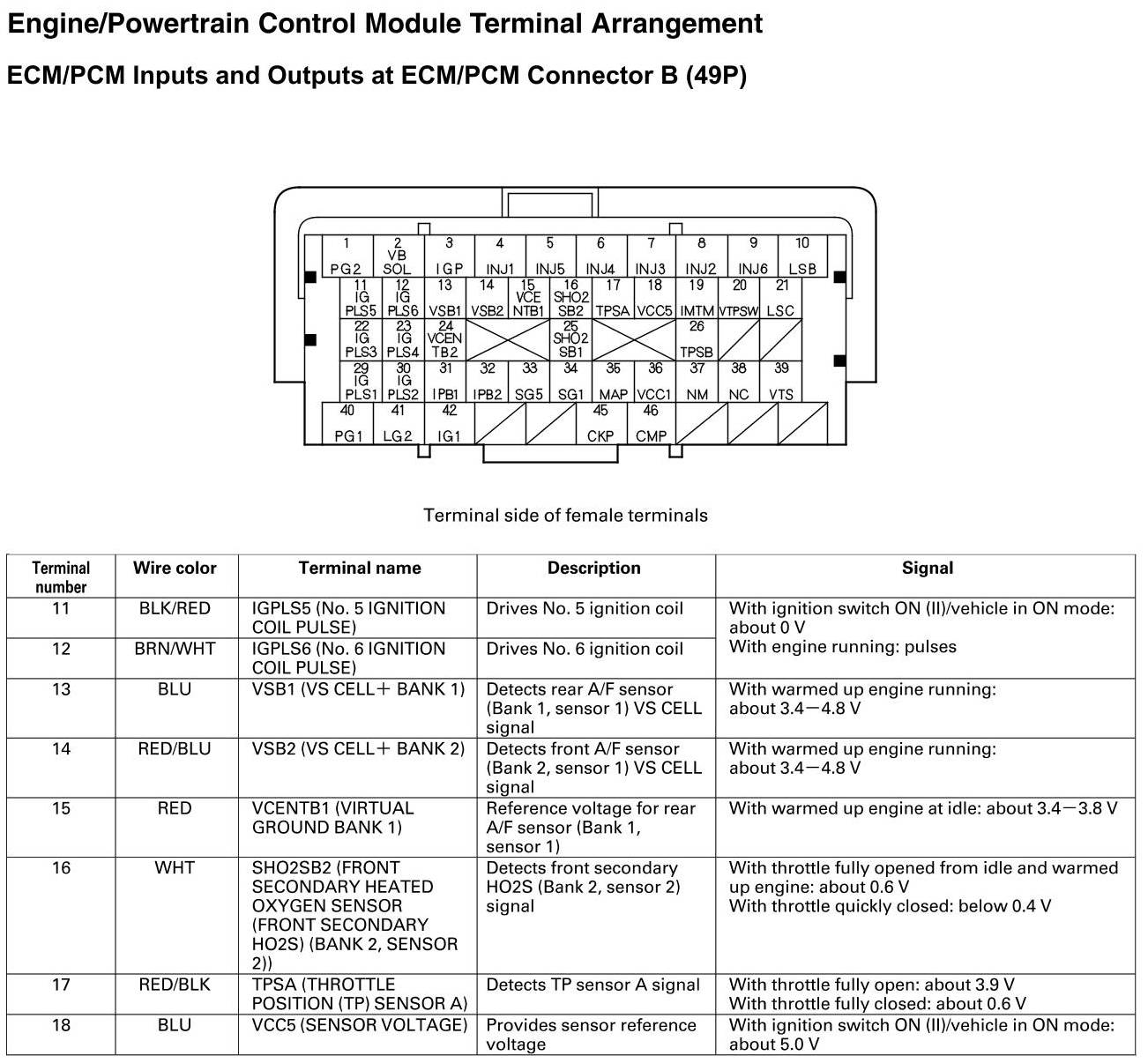

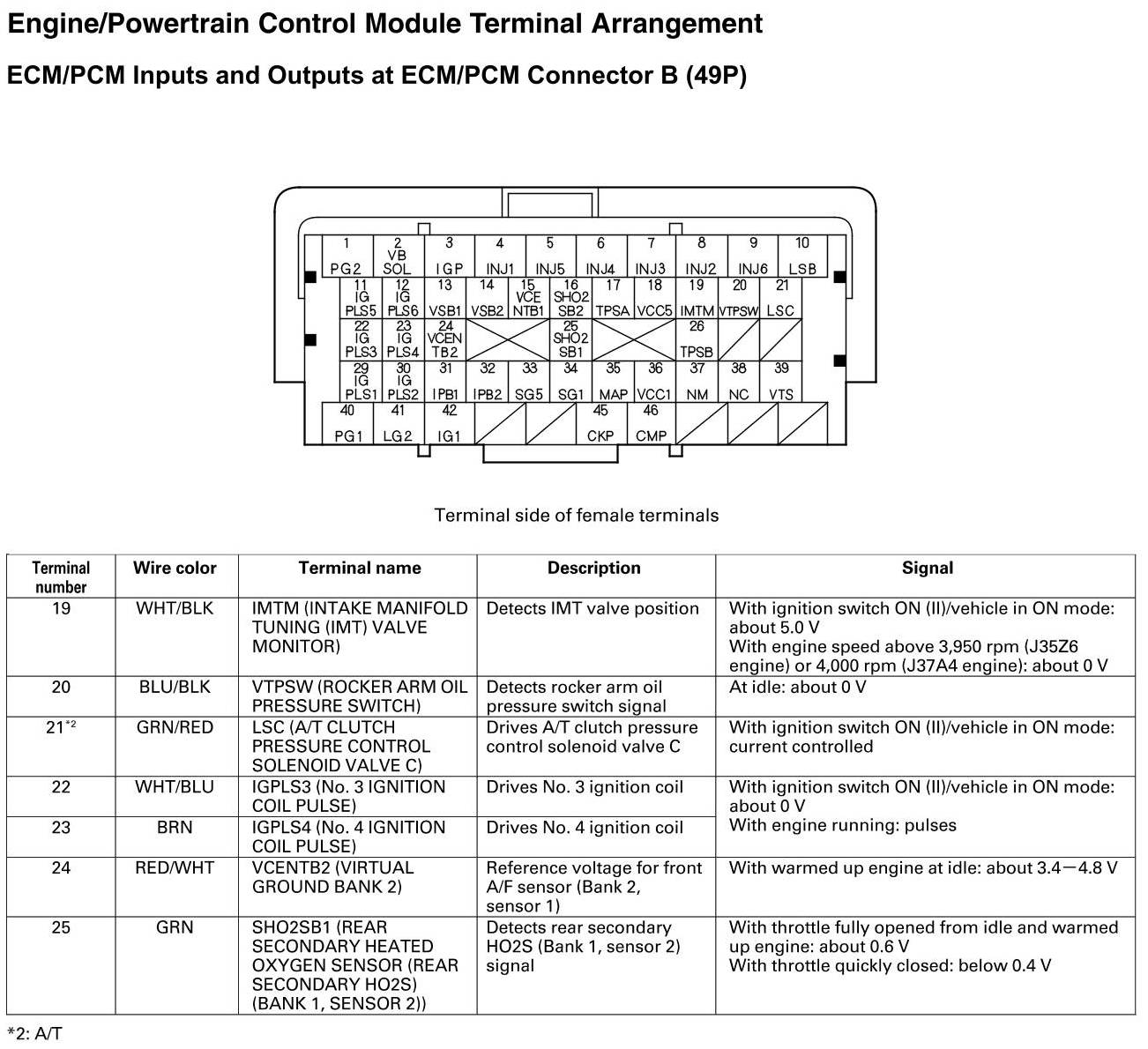

ECM/PCM Inputs and Outputs at Connector B
ECM/PCM Inputs and Outputs at Connector B
