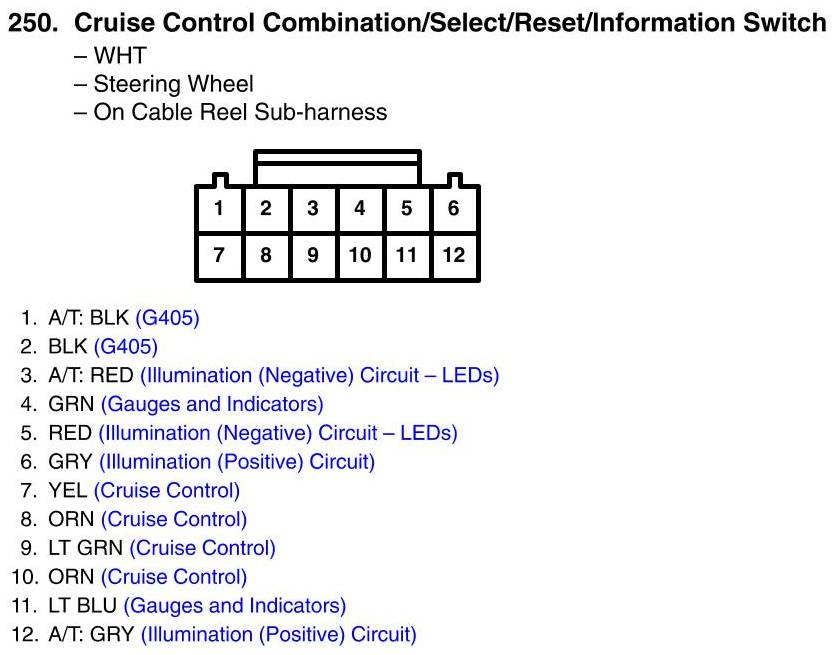

View 250 - Cruise Control Combination/Select/Reset/Information Switch Connector View
View 250 - Cruise Control Combination/Select/Reset/Information Switch Connector View
