Intermediate Shaft Disassembly

Intermediate Shaft Disassembly

Special Tools Required

- Driver handle, 15 x 135L 07749-0010000
- Base attachment, 70 mm 07LAF-SM40300
- Base, 73 x 78/82.6 mm 07965-SD90100
- Bearing driver attachment, 42 x 47 mm 07746-0010300

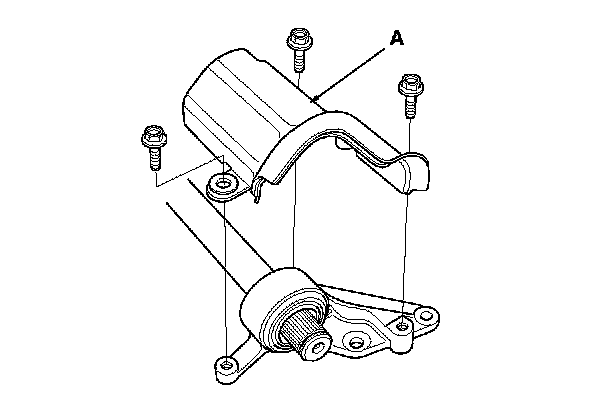

1. Remove the heat shield (A).

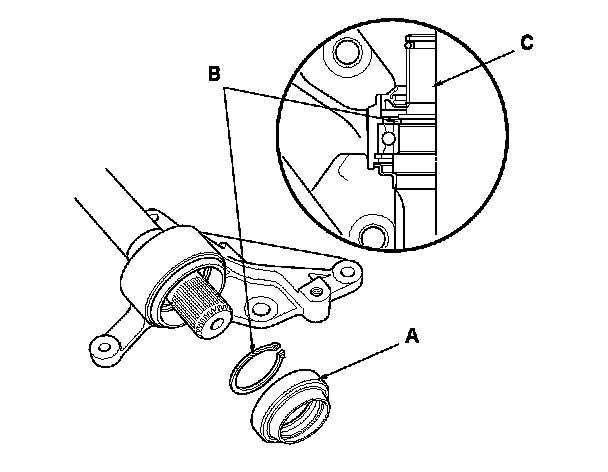

2. Remove the outer seal (A) and the external snap ring (B) from the intermediate shaft (C).

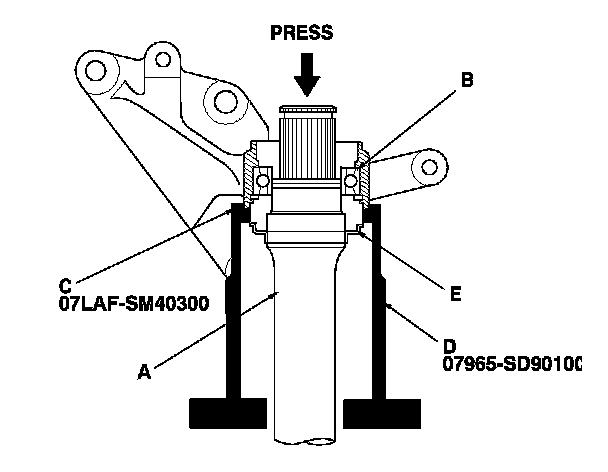

3. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using the 70 mm base attachment (C), the 73 x 78/82.6 mm base (D), and a press. Be careful not to damage the bearing support ring (E) on the intermediate shaft during disassembly.

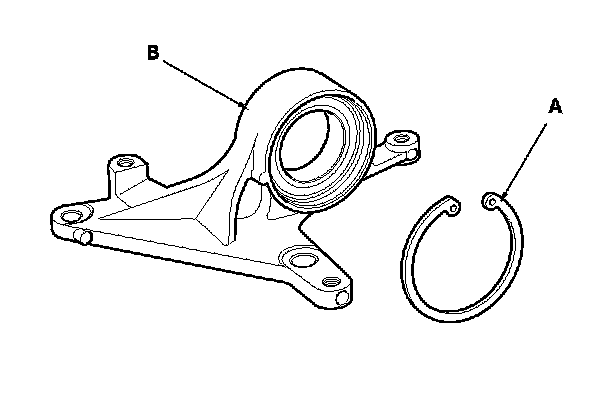

4. Remove the internal snap ring (A) from the bearing support (B).

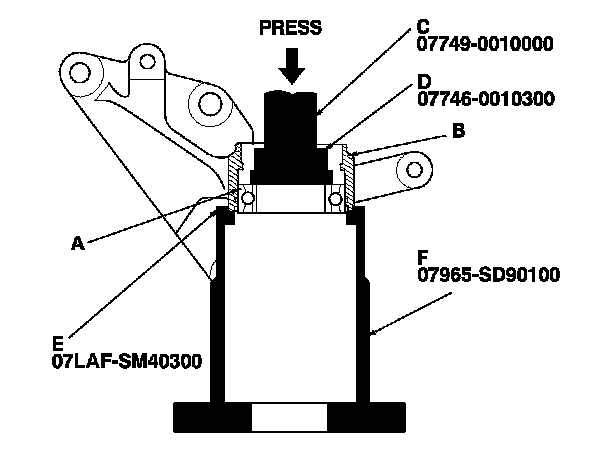

5. Press the intermediate shaft bearing (A) out of the bearing support (B) using the 15 x 135L driver handle (C), the 42 x 47 mm bearing driver attachment (D), the 70 mm base attachment (E), the 73 x 78/82.6 mm base (F), and a press.
