Mainshaft Bearing Installation

Mainshaft Bearing Installation

Special Tools Required

- Driver 07749-0010000
- Attachment, 78 x 80 mm 07NAD-PX40100
1. Install the bearing in the direction shown.

2. Expand the snap ring with the snap ring pliers, and insert the bearing part-way into the housing.

3. Release the pliers, then push the bearing down into the housing until the snap ring snaps in place around it.

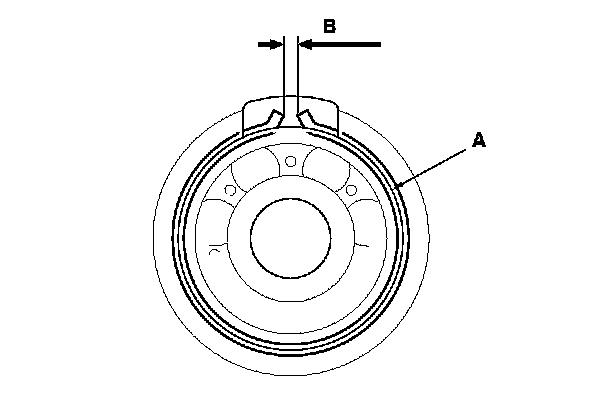

4. After installing the bearing, check that the snap ring (A) is seated in the bearing and housing groove, and that the ring end gap (B) is 0-7 mm (0-0.28 in).
