4th Clutch Transmission Fluid Pressure Switch Replacement

4th Clutch Transmission Fluid Pressure Switch Replacement

1. Do the battery removal procedure. Removal and Replacement

2. Remove the air cleaner. Service and Repair

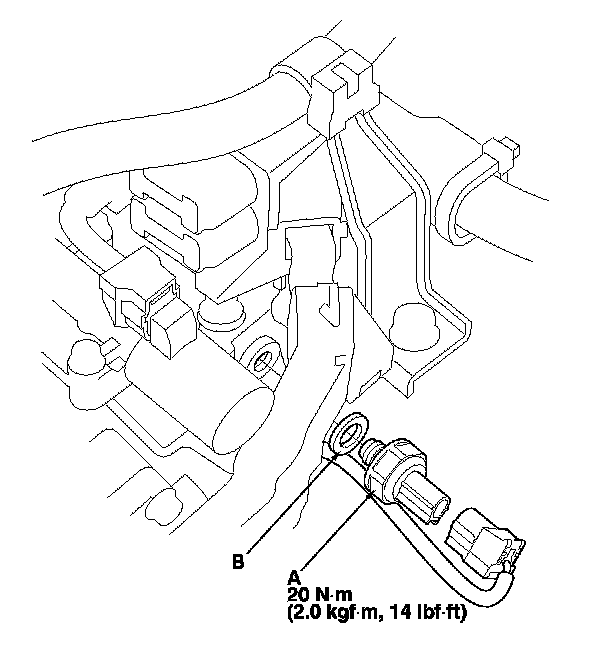

3. Disconnect the 4th clutch transmission fluid pressure switch connector, and remove the switch (A).

4. Install the new 4th clutch transmission fluid pressure switch and a new sealing washer (B), and tighten the switch.

5. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

6. Install the air cleaner. Service and Repair

7. Do the battery installation procedure. Removal and Replacement
