Fuel Filler Hose: Service and Repair

Fuel Fill Pipe Removal/Installation

1. Drain the fuel tank. Service and Repair

2. Remove the left rear damper. Rear Damper Replacement

3. Remove the fuel fill cap.

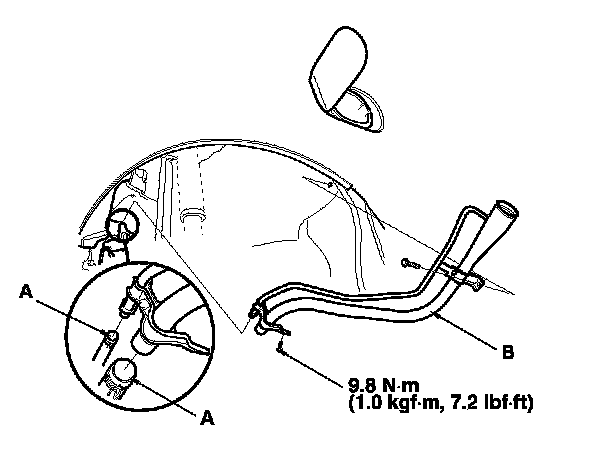

4. Disconnect the fuel fill tubes (A), from the fuel fill pipe (B).

5. Remove the bolts and the fuel fill pipe.

6. Install the parts in the reverse order of removal.
NOTE: Before connecting the fuel fill pipe and the quick-connect fitting, check for dirt, and clean it if needed, taking care not to damage the fuel fill pipe and other parts.
