Home
>>
Acura
>>
2010
>>
RL V6-3.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Diagrams
>>

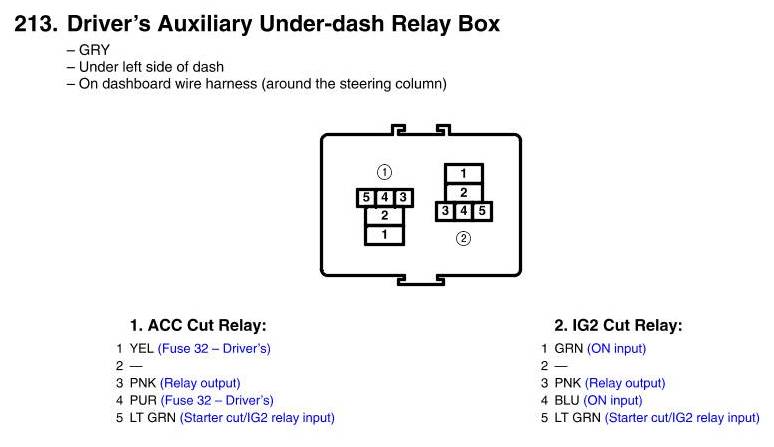

Driver's Auxiliary Under-dash Relay Box Connector View
Driver's Auxiliary Under-dash Relay Box Connector View
