Recirculation Control Motor Replacement

Recirculation Control Motor Replacement

1. Remove the glove box. Glove Box Removal/Installation

2. Remove the USB adapter unit. USB Adapter Unit Replacement

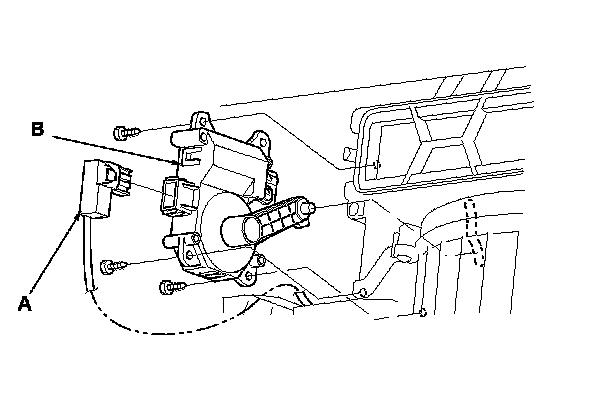

3. Disconnect the 5P connector (A) from the recirculation control motor (B). Remove the self-tapping screws and the recirculation control motor from the blower unit.

4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
