Rear Vent Control Motor Replacement

Rear Vent Control Motor Replacement

1. Remove the utility pocket. Utility Pocket Removal/Installation

2. Remove the center console. Center Console Removal/Installation Remove the rear vent duct. Dashboard/Steering Hanger Beam Removal/Installation

3. Remove the shift lever. A/T Shift Lever Removal

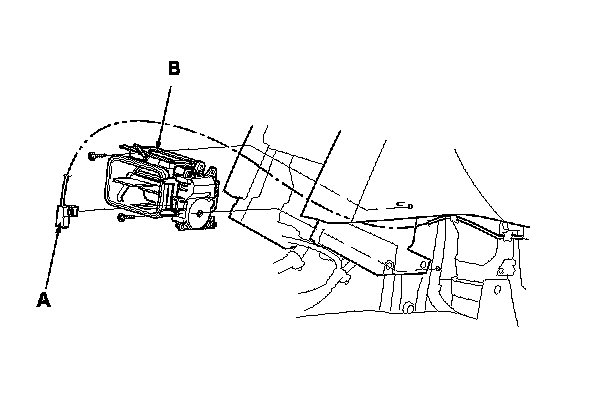

4. Disconnect the 5P connector (A) and the duct (B).

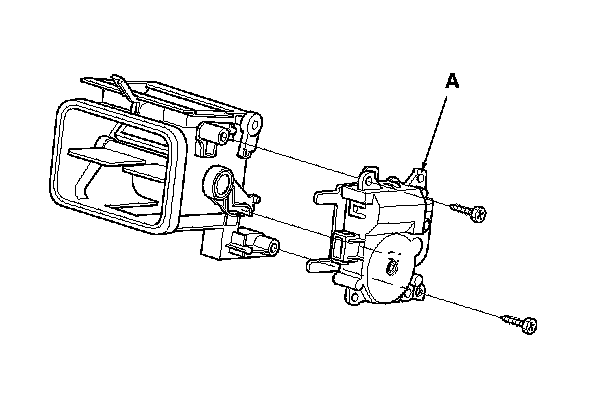

5. Remove the self-tapping screws and the rear vent control motor (A).

6. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
