Driver's Air Mix Control Motor Replacement

Driver's Air Mix Control Motor Replacement

1. Remove the driver's dashboard undercover.

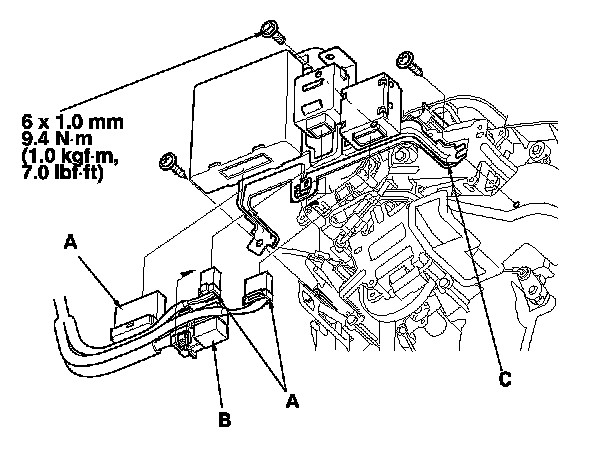

2. Disconnect the connectors (A) from the adaptive front lighting control unit, the electronically controlled power steering control unit, and the daytime running lights control unit. Remove the relay (B), the bolt, and the self-tapping screws, then remove the bracket (C).

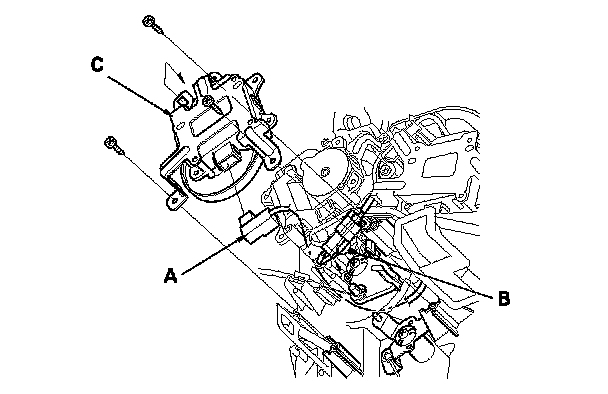

3. Disconnect the 5P connector (A) from the driver's air mix control motor. Remove the connector clip (B). Remove the self-tapping screws and the driver's air mix control motor (C).

4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
