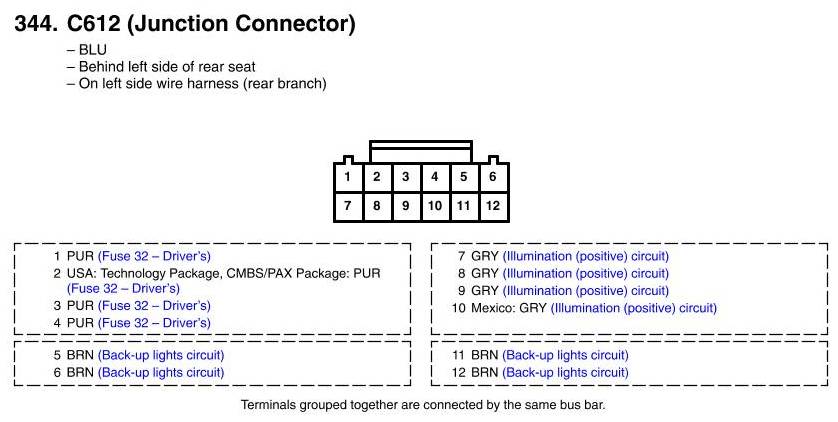

View 344 - C612 (Junction Connector) Connector View
View 344 - C612 (Junction Connector) Connector View
