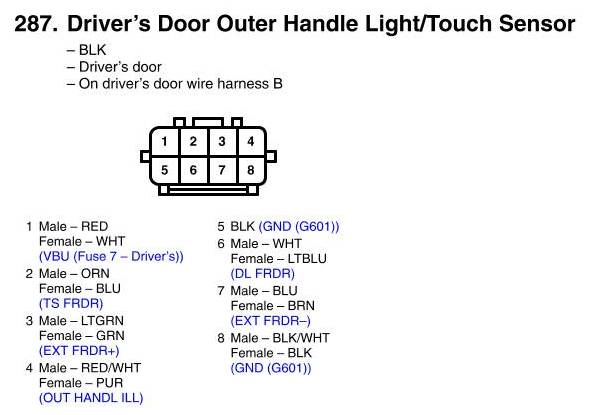

View 287 - Driver's Door Outer Handle Light/Touch Sensor Connector View
View 287 - Driver's Door Outer Handle Light/Touch Sensor Connector View
