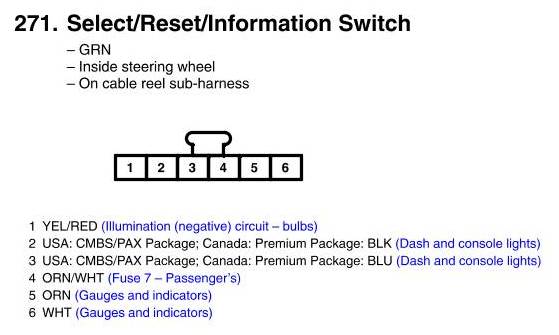

View 271 - Select/Reset/Information Switch Connector View
View 271 - Select/Reset/Information Switch Connector View
