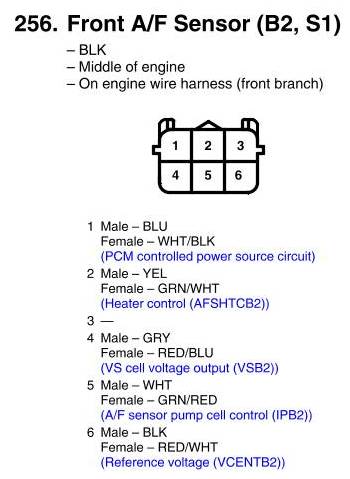

View 256 - Front A/F Sensor (B2, S1) Connector View
View 256 - Front A/F Sensor (B2, S1) Connector View
