Seat Heater Test (With Seat Ventilator)

Seat Heater Test

Driver's Seat

1. Remove the driver's seat, Front Seat Removal/Installation then remove the seat-back cover. Front Seat-Back Cover Replacement

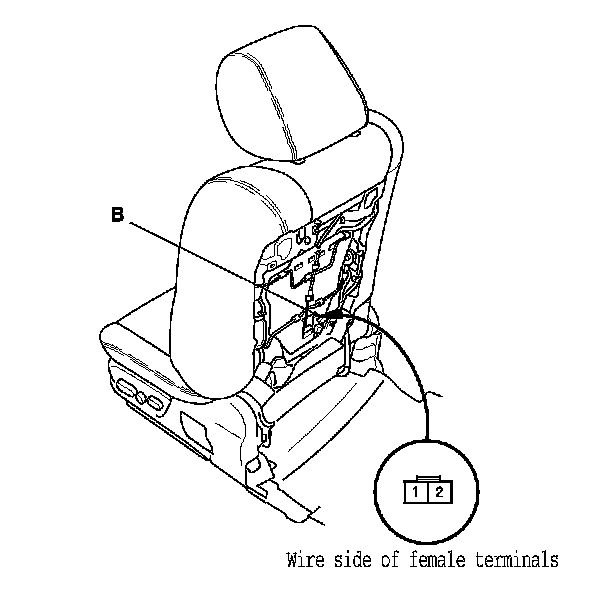

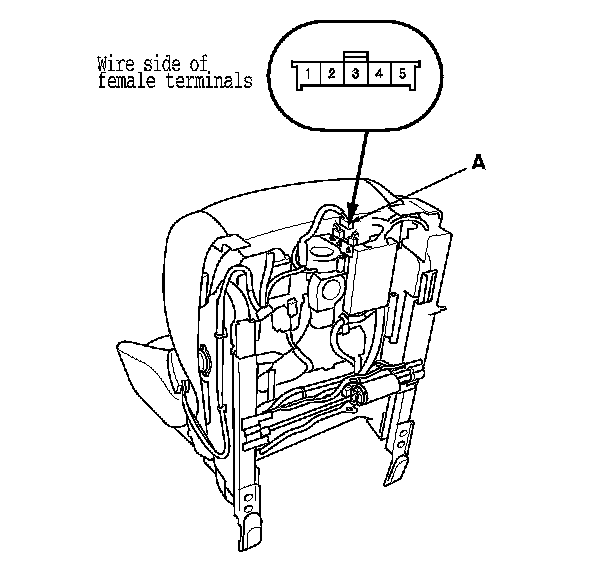

2. Disconnect the 5P connector (A) from the seat cushion heater and 2P connector (B) from the seat-back heater.











Seat Cushion Heater Test

3. Check for continuity between seat cushion heater 5P connector terminals No. 2 and No. 3. There should be continuity. If there is no continuity, replace the seat cushion heater.

4. Check for continuity between seat cushion heater 5P connector terminals No. 1 and No. 4. There should be continuity, replace the seat cushion heater.

Seat-back Heater Test

5. Check for continuity between seat-back heater 2P connector terminals No. 1 and No. 2. There should be continuity. If there is no continuity, replace the seat-back heater.

6. Reconnect the 5P and 2P connectors to the seat heaters, and check for continuity between seat cushion heater 5P connector terminal No. 5 and seat-back heater 2P connector terminal No. 2. There should be continuity. If there is no continuity, repair an open in the wire between the seat cushion heater and the seat-back heater.

Front Passenger's Seat

1. Remove the front passenger's seat. Front Seat Removal/Installation

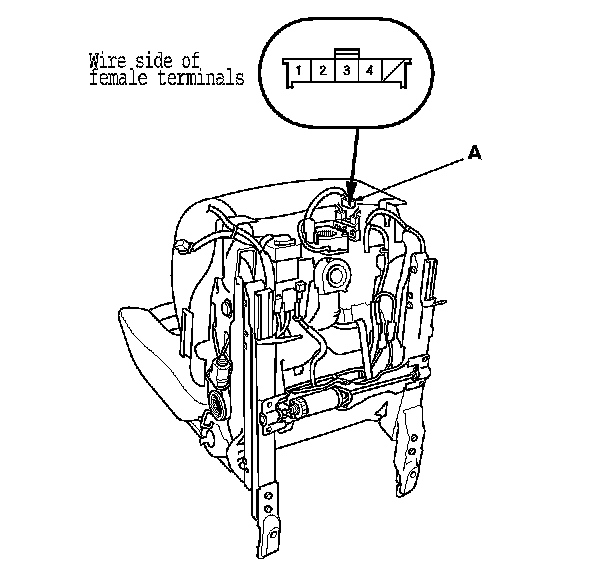

2. Disconnect the 5P connector (A) from the seat cushion heater.

3. Check for continuity between seat cushion heater 5P connector terminals No. 2 and No. 3. There should be continuity. If there is no continuity, replace the seat cushion heater.

4. Check for continuity between seat cushion heater 5P connector terminals No. 1 and No. 4. There should be continuity. If there is no continuity, replace the seat cushion heater.
