Driver's Power Seat Motor Test

Driver's Power Seat Motor Test

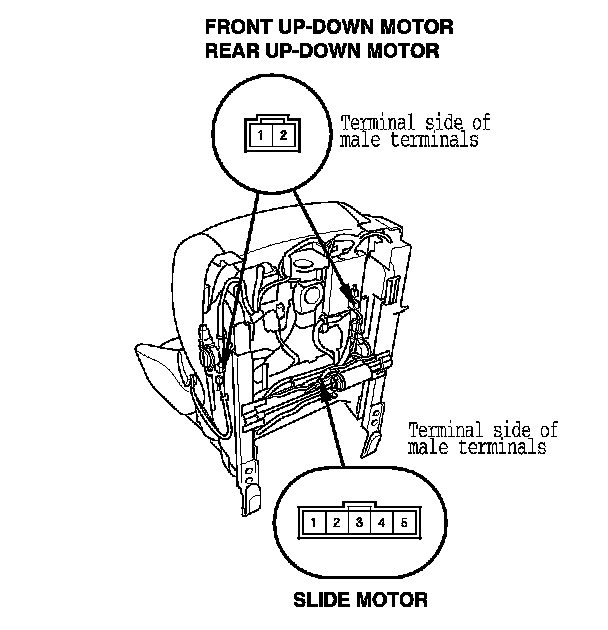

Slide motor, Front up-down motor, Rear up-down motor

1. Remove the driver's seat. Front Seat Removal/Installation

2. Disconnect the connector from each power seat motor.






3. Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

4. If the motor does not run or fails to run smoothly, replace it:
- Slide motor Front Seat Slide Motor Replacement

- Front up-down motor Front Seat Up-Down Motor Replacement

- Rear up-down motor Front Seat Up-Down Motor Replacement





Recline motor

1. Remove the driver's seat-back cover. Front Seat-Back Cover Replacement

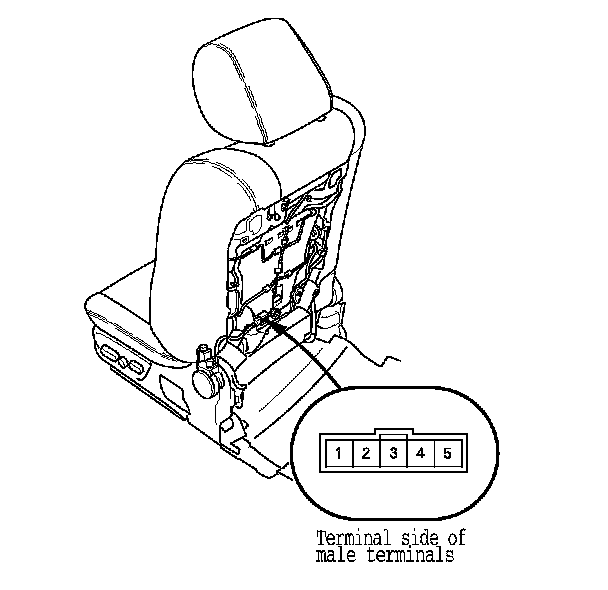

2. Disconnect the 5P connector from the recline motor.

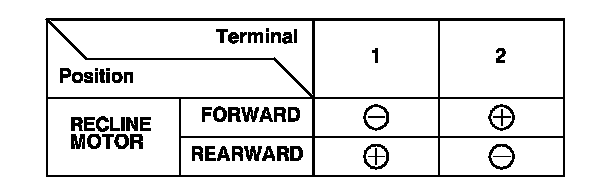

3. Test the motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

4. If the motor does not run or fails to run smoothly, replace the recline motor. Front Seat Recline Motor Replacement
