Side Undercarriage Cover Replacement

Side Undercarriage Cover Replacement

Special Tools Required

- Push pin puller 07AAC-SJAA100
NOTE: Use the special tool to remove the clips.

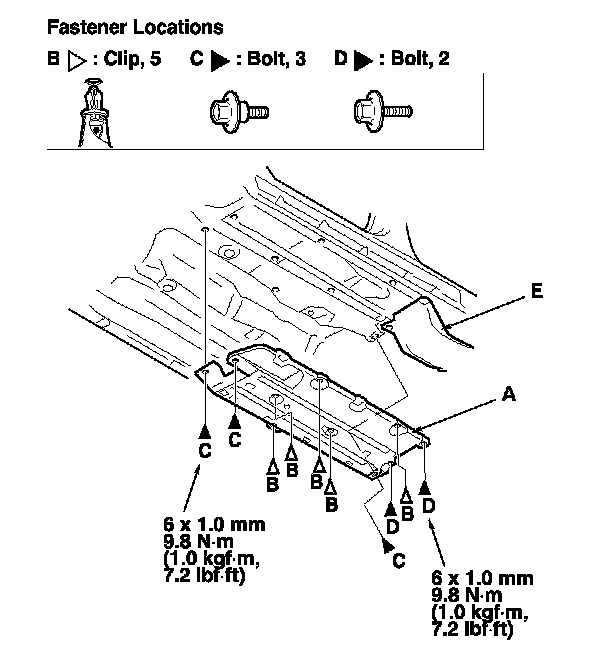

1. Remove the side undercarriage covers (A).
-1 Remove the clips (B) and the bolts (C).
Remove the bolts (D) securing the side undercarriage cover and the fuel tank cover (E).

2. Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
