Auxiliary Jack Assembly Replacement

Auxiliary Jack Assembly Replacement

1. Remove the accessory trim. Center Console Removal/Installation

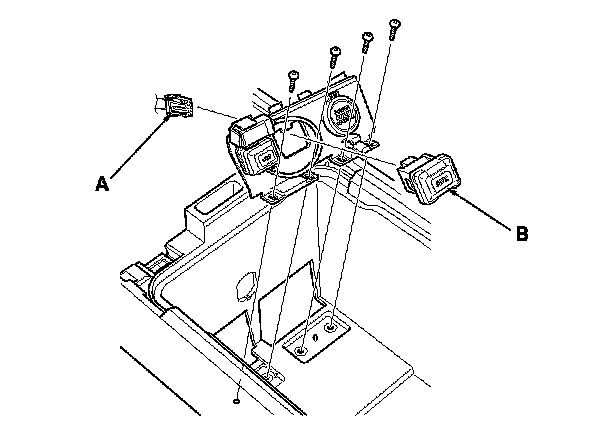

2. Disconnect the 5P connector (A) from the auxiliary jack assembly (B).

3. Install the auxiliary jack assembly in the reverse order of removal.
