Cellular Phone: Description and Operation

HandsFreeLink System Description

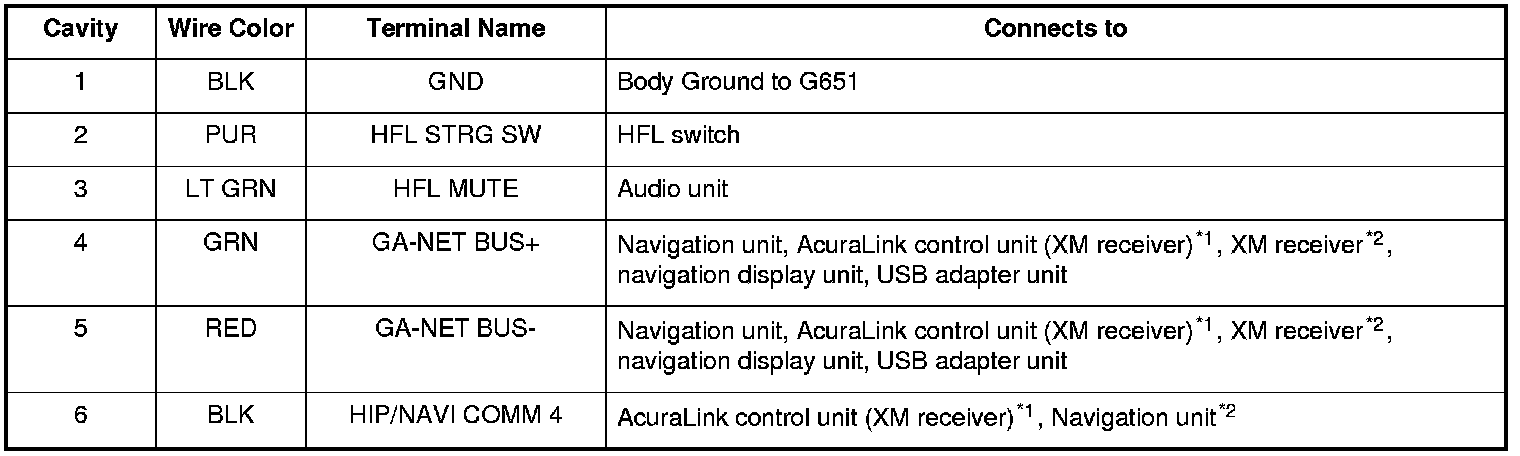

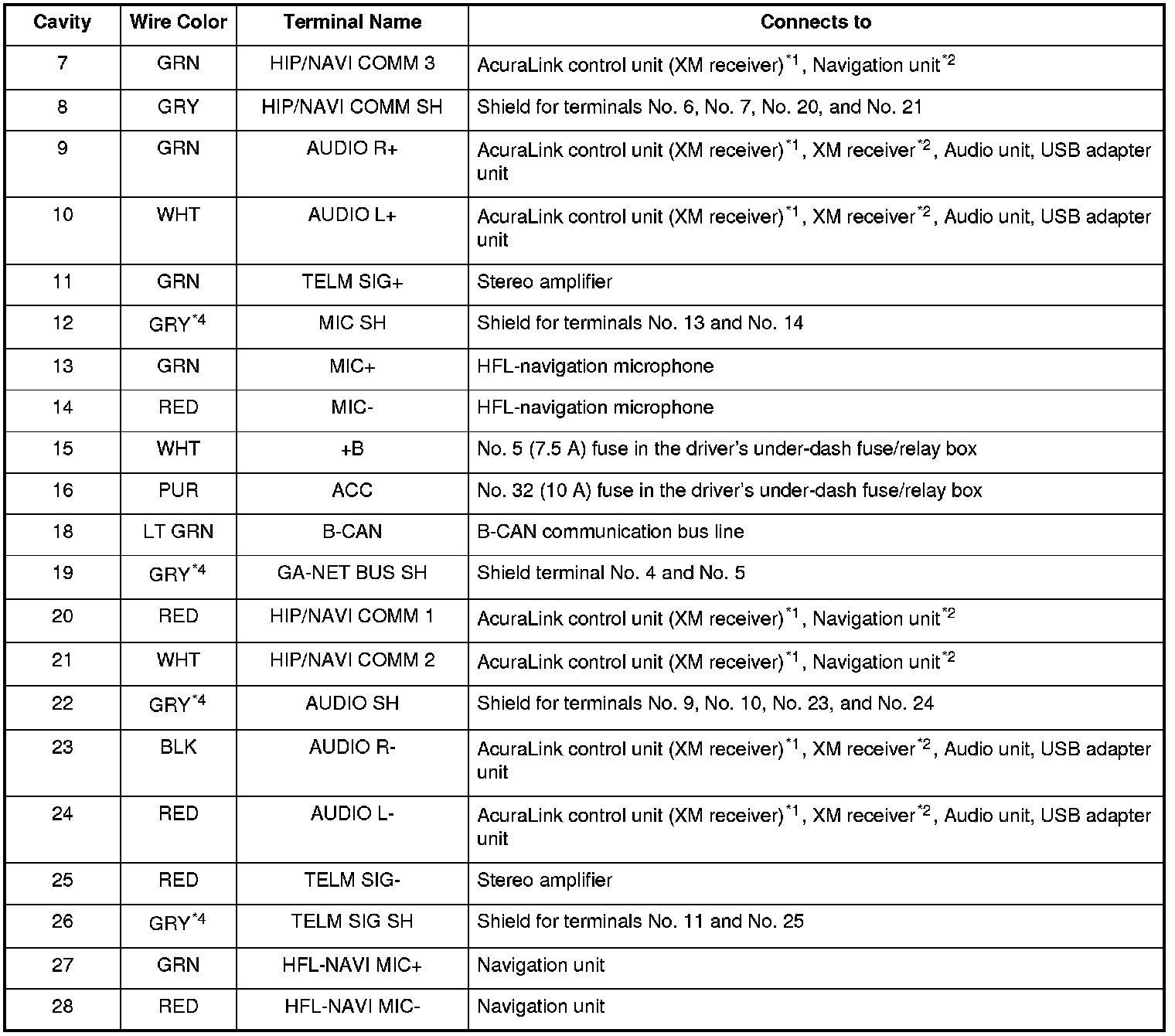

HandsFreeLink Control Unit Inputs and Outputs

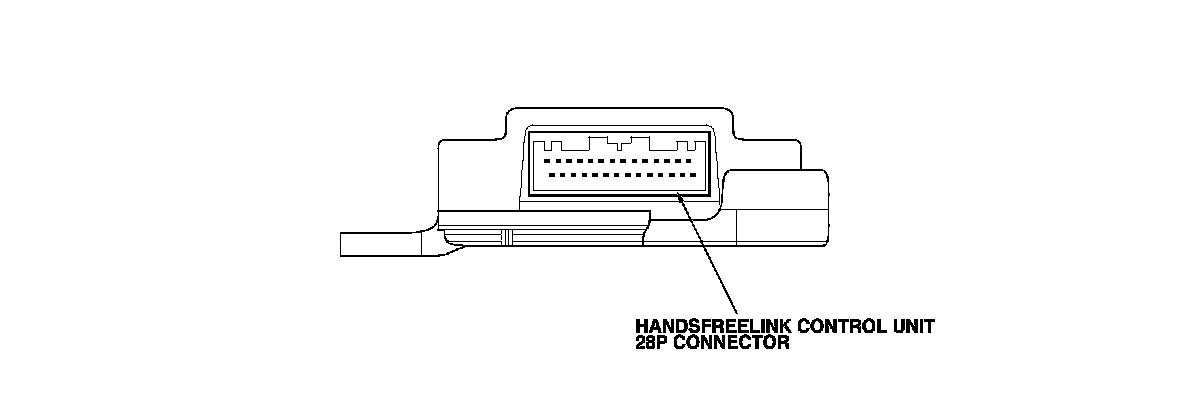

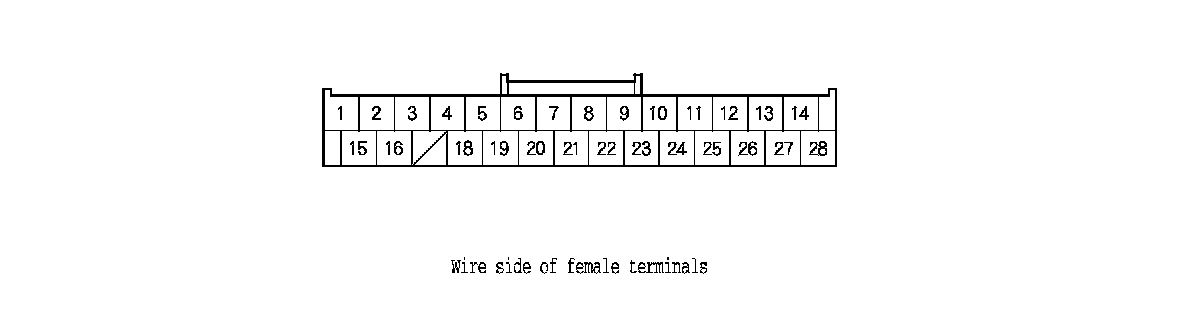

HandsFreeLink Control Unit 28P Connector

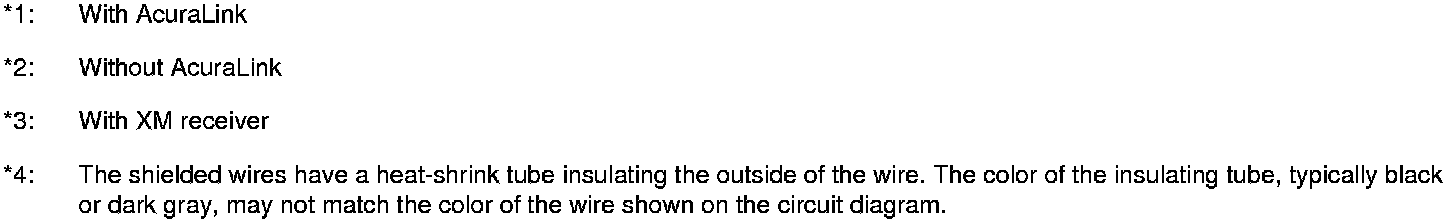

*1: With AcuraLink

*2: Without AcuraLink
