Tightening Torques

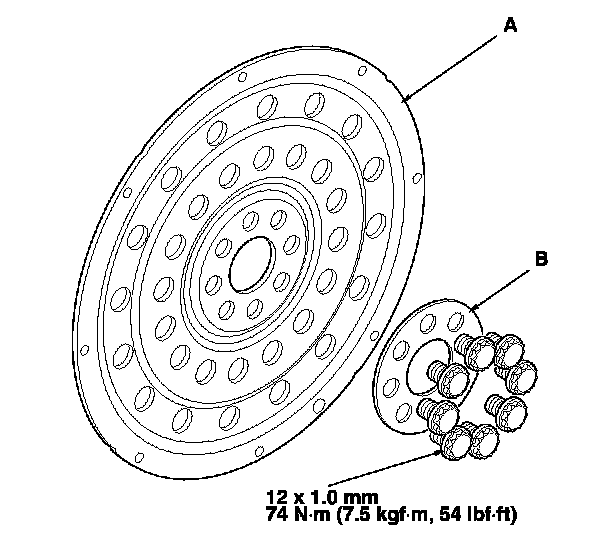

Flex plate





Tighten the eight bolts in a crisscross pattern in at least two steps

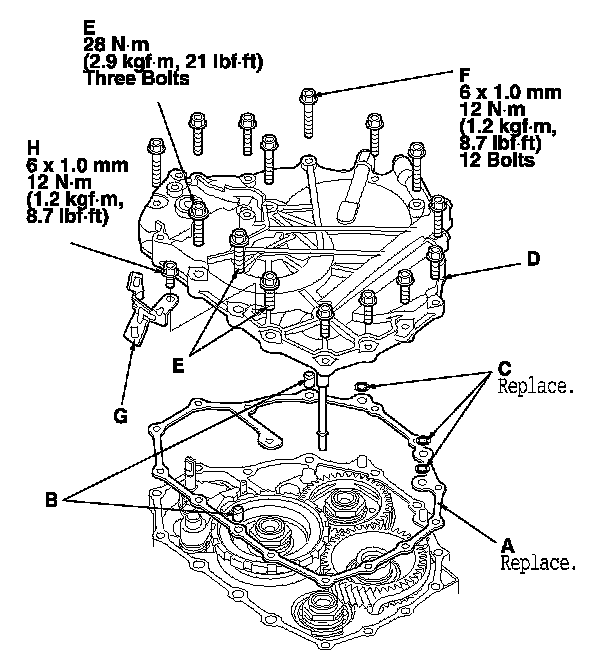

End cover
