A/T Clutch Pressure Control Solenoid Valve B and C Replacement

A/T Clutch Pressure Control Solenoid Valve B and C Replacement

1. Do the battery removal procedure. Removal and Replacement

2. Disconnect PCM connectors A, B, and C, then remove the PCM. ECM/PCM Replacement (A/T)

3. Remove the battery base. Service and Repair

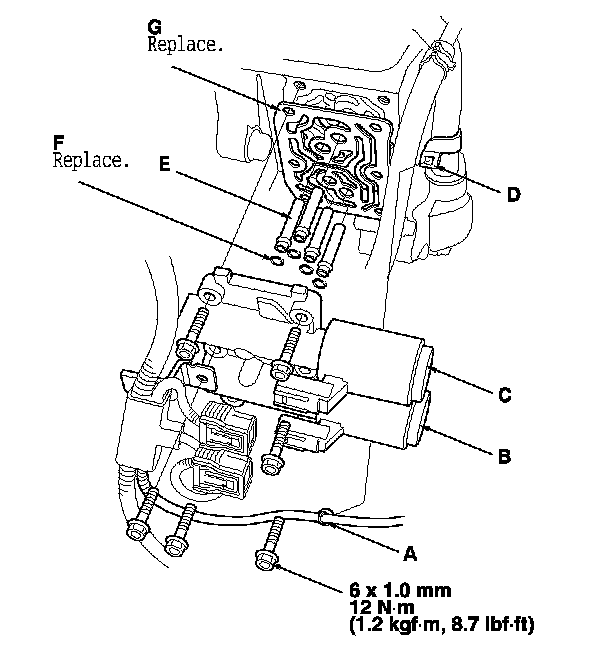

4. Remove the harness clamp (A) from the clamp bracket (D). Disconnect the A/T clutch pressure control solenoid valves B and C connectors, then remove A/T clutch pressure control solenoid valves B and C.

5. Remove the ATF joint pipes (E), the O-rings (F), and the gasket (G).

6. Clean the mounting surface and the fluid passages of the transmission housing.

7. Install a new gasket on the transmission housing, and install the ATF joint pipes. Install new O-rings over the ATF joint pipes.
NOTE: Be sure to install a new gasket with the blue side toward the transmission housing.

8. Install new A/T clutch pressure control solenoid valves B and C, and install the harness clamp to the clamp bracket.

9. Check the connectors for rust, dirt, or oil, and clean or repair if necessary. Then connect the connectors securely.

10. Install the battery base. Service and Repair

11. Connect PCM connectors A, B, and C, then install the PCM. ECM/PCM Replacement (A/T)

12. Do the battery installation procedure. Removal and Replacement
