Audio/Navigation Systems - Glare Off Of Display Lens

08-048

October 31, 2008

Applies To:
2009 TSX - ALL

Audio or Navigation Display Unit Lens Reflection

SYMPTOM

Under certain lighting conditions, the dashboard is reflected in the audio or navigation display, which makes it hard to read the screen.

CORRECTIVE ACTION

Install an instrument panel pad.

PARTS INFORMATION

Instrument Panel Pad: P/N 77255-TLO-305

WARRANTY CLAIM INFORMATION

In warranty:
The normal warranty applies.

Operation Number: 8410B4

Flat Rate Time: 0.2 hour

Failed Part: P/N 39712-TLO-GO1

Defect Code: 03214

Symptom Code: 03273

Template ID: 08-048A

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

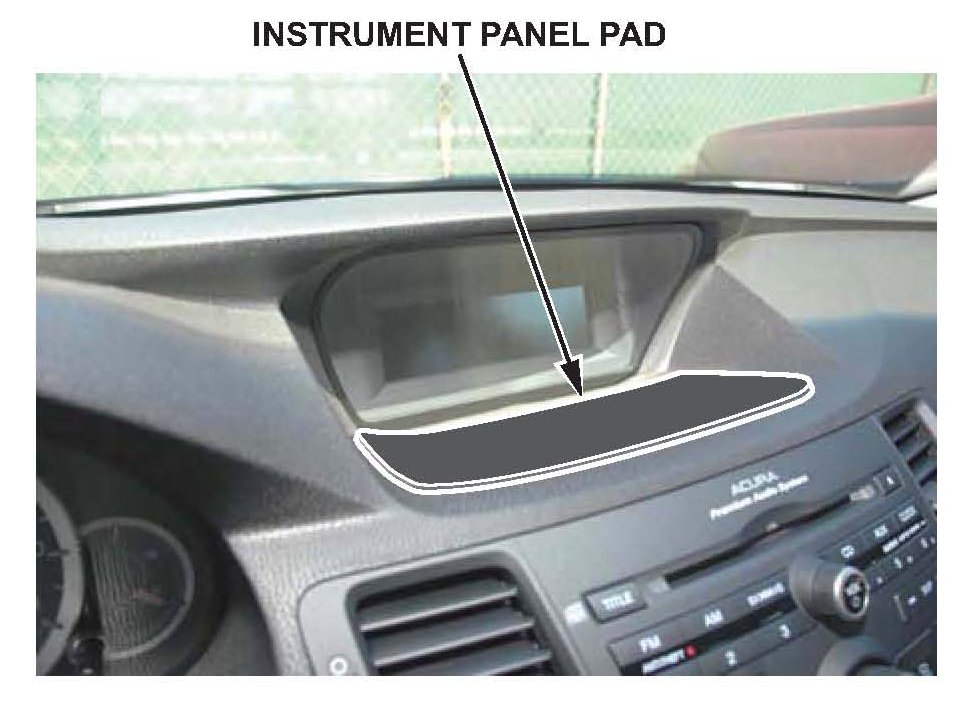

Place the instrument panel pad beneath the audio or navigation display. The instrument panel pad material holds the pad in place.
