Key Interlock Solenoid Test (A/T)

Key Interlock Solenoid Test

NOTE: SRS components are located in this area. Review the SRS component locations, Locations the precautions and procedures Service and Repair before doing repairs or service.

1. Remove these items:
- Lower steering column cover Steering Column Cover Removal/Installation

- Driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation

2. Disconnect the steering lock assembly connector.

3. Turn the ignition switch to ACC (I).

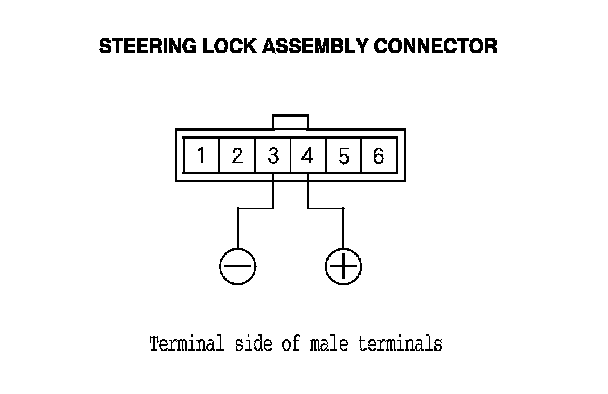

4. Connect the positive battery terminal to steering lock assembly connector terminal No. 4, and connect the negative battery terminal to terminal No. 3. Check that the ignition key cannot be turned to LOCK (0). Release the battery terminals, and check that the key can be turned to the LOCK (0) position and removed from the cylinder.

5. If the key interlock solenoid works improperly, replace the ignition key cylinder/steering lock assembly. Service and Repair

6. Install these items:
- Lower steering column cover Steering Column Cover Removal/Installation

- Driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation
