Home >> Acura >> 2009 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 256 - C412 Connector View (XM Radio, AcuraLink)

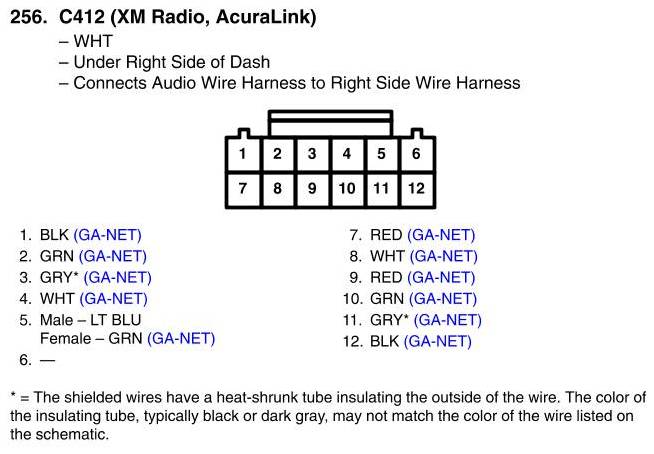

View 256 - C412 Connector View (XM Radio, AcuraLink)
