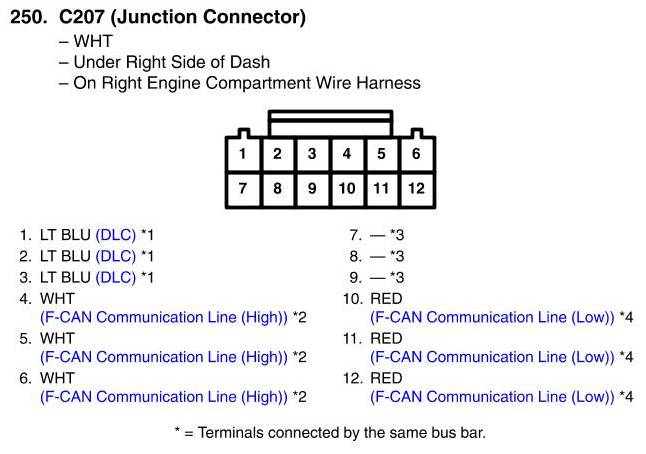

View 250 - C207 (Junction Connector) Connector View
View 250 - C207 (Junction Connector) Connector View
