Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Acura
>>
2009
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

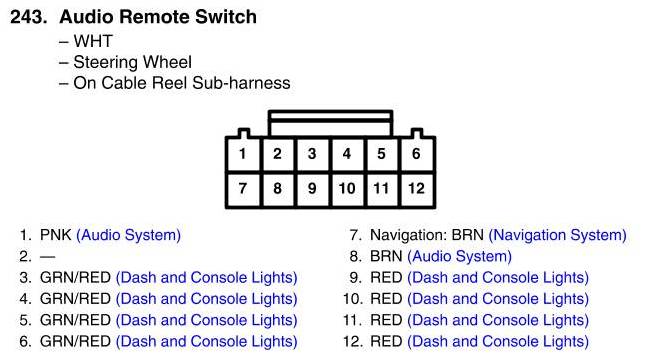

View 243 - Audio Remote Switch Connector View
View 243 - Audio Remote Switch Connector View
