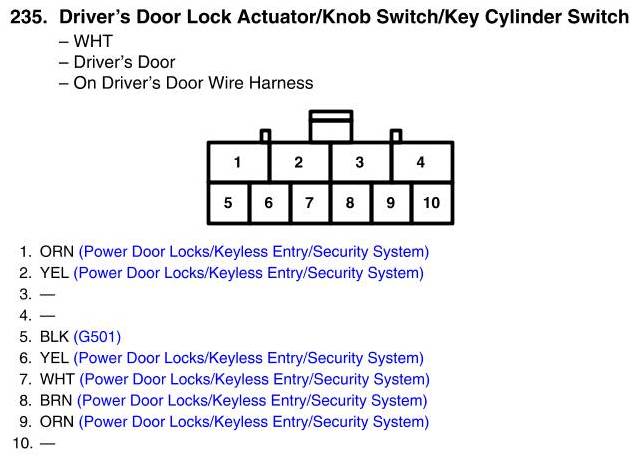

View 235 - Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch Connector View
View 235 - Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch Connector View
