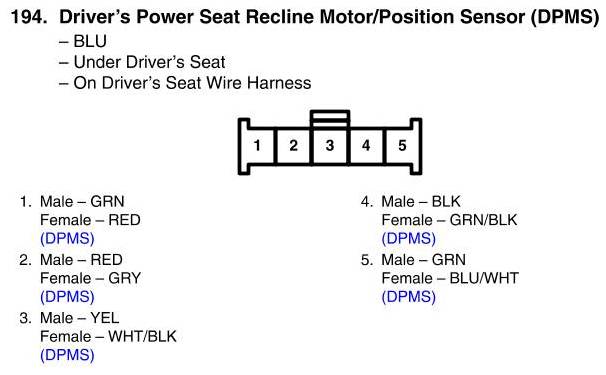

View 194 - Driver's Power Seat Recline Motor/Position Sensor Connector View (DPMS)
View 194 - Driver's Power Seat Recline Motor/Position Sensor Connector View (DPMS)
