Audio Remote Switch Test

Audio Remote Switch Test

1. Remove the audio remote switch. Audio Remote Switch Replacement (With Premium Audio System)

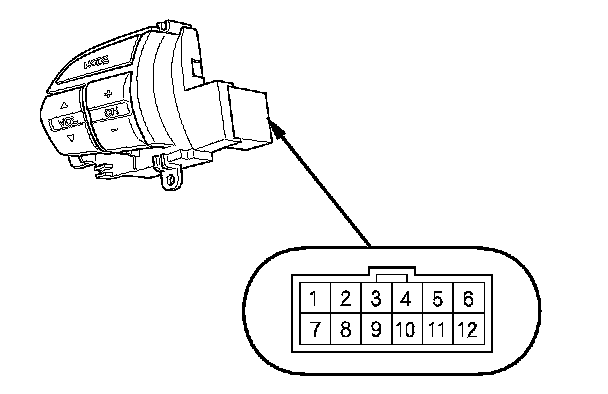

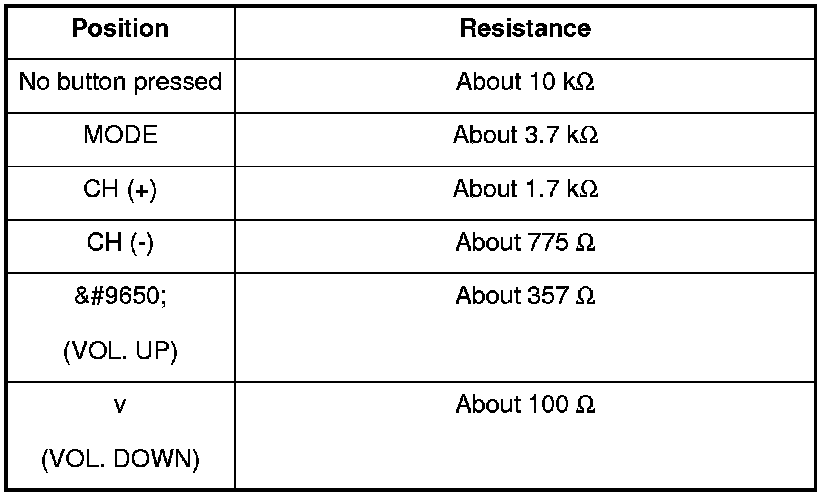

2. Measure the resistance between terminals No. 7 and No. 9 in each switch position according to the table.





3. If the resistance is not as specified, replace the audio remote switch.
