Auxiliary Input / Output Jack: Service and Repair

Auxiliary Jack Assembly Replacement

1. Remove the center console. Center Console Removal/Installation

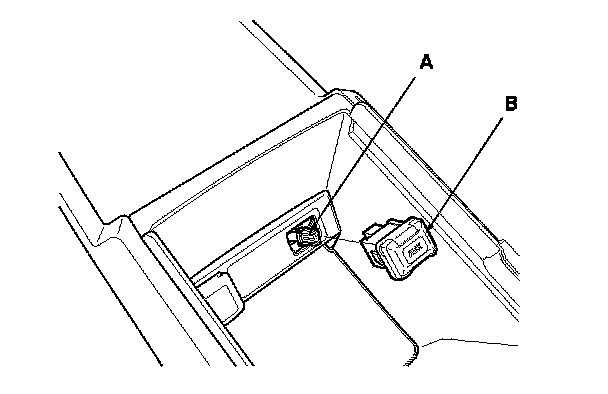

2. Disconnect the connector (A). and carefully pull out the auxiliary jack assembly (B) from the center console box.

3. Install the auxiliary jack assembly in the reverse order of removal.
