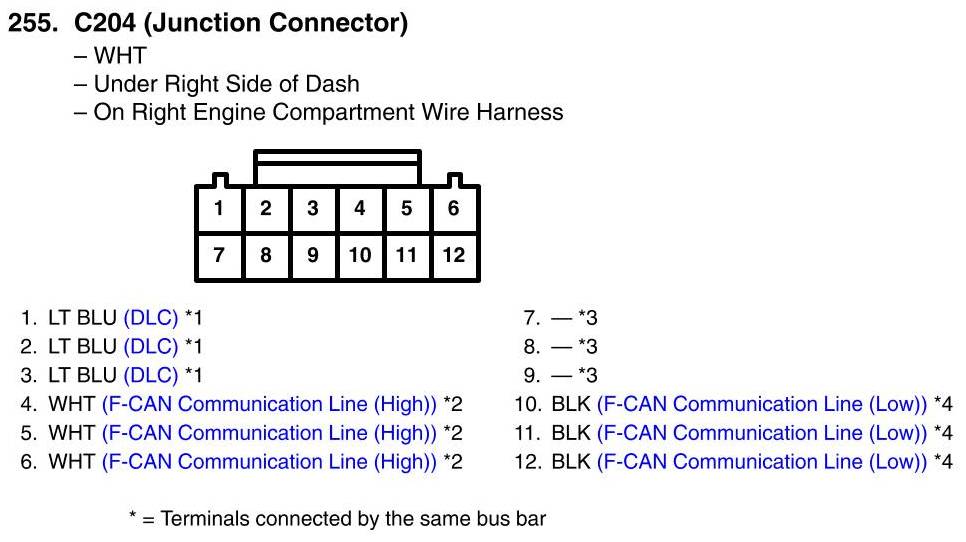

View 255 - C204 (Junction Connector) Connector View
View 255 - C204 (Junction Connector) Connector View
