A/T Transfer Output Shaft Oil Seal Replacement

A/T Transfer Output Shaft Oil Seal Replacement

Special Tools Required

- Driver handle, 15 x 135L 07749-0010000
- Attachment, 65 mm 07JAD-SH30100

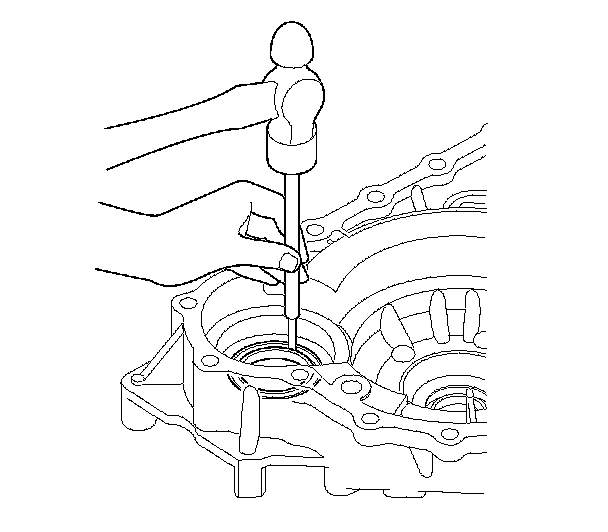

1. Remove the oil seal from the torque converter housing.

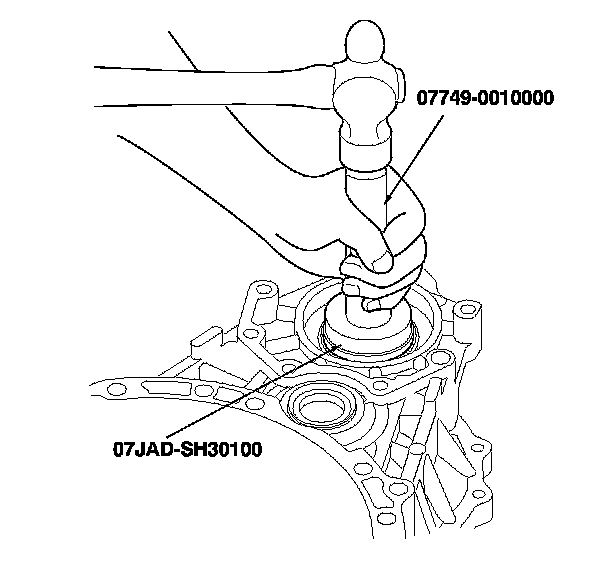

2. Install a new oil seal flush to the torque converter housing using the driver handle and the 65 mm attachment.
